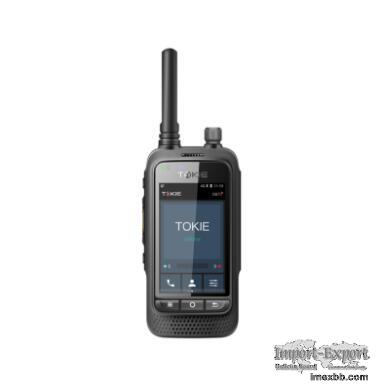

TK1100 - LTE / DMR Radio

The TK1100 is suitable for mission critical communications since it comes with
Dual mode DMR and LTE networks working seamlessly to ensure communications are
always possible.
Find here details of the company selling DMR Radio and LTE Mobile Radio. All
the products with super quality and competitive price. TOKIE is a leader in the
industry and we will not disappoint you.
Operating System
TOKIE customize Android 8.1 Oreo

Hardware Platform
MTK6739 Quad-Core A53 1.5GHz 64bit

Network Type
Support 2G, 3G(WCDMA, TD-SCDMA, C2K), 4G(FDD LTE/TDD LTE)

RAM
1GB RAM + 8GB ROM / 2G RAM +16G ROM

Display
Corning® Gorilla® Glass 3, TFT 3.1“IPS, 800 x 480
TOKIE
GPS
GPS, GLONASS & AGPS, dual-mode positioning

WiFi
802.11 a/b/g/n, dual-band

Bluetooth
BT4.0

Sensor
G-Sers , or, Proximity Sensor, Light Sensor

USB Interface
Micro USB 2.0, support OTG

SIM Card
Micro-SIM single card

Encoding / Decoding Capabilities
H.264 high profile, 720P 30FPS

Speaker
36mm ⏀ 2.0W @ 90dB

Microphone
Sensitivity -42dB

Rear Camera
8 million pixels camera

Front Camera
2 million pixels camera

Video Quality
Support 720P video recording

Indicator LED
Single 3-colors LED

M6
Support External Speaker, Mic, Earphone, DMR Talking, UART

Working Environment
Temperature -20 °C - 60 °C, humidity 20% - 90%

Degree of Protection
IP67, water & dust resistance, anti-drop 1.5 meters

Weight
210g

Battery Capacity
3,600mAh, replaceable

Size
119.5mm x 61.5mm x 23.5mm

Frequency Range
UHF 400 ～470 MHz

Frequency Stability
± 0.5ppm

Number of Channels
16 (Analog/Digital)

Channel Spacing
12.5KHZ / 25KHZ (Analog), 12.5KHZ (Digital)

Vocoder
AMBE3000, WT3000, AMBE1000, SELP, AVDS

MIL-STD
MIL-STD 810D and E

Audio Distortion
Less than 10%

Audio Power
2 Watt

DMR
TIER 1 & TIER 2

Transmitting Power
Low: 0.5W, High: 2W

Antenna Impedance
50Ω

Sensitivity
0.22 mV (Typical)

DMR antenna Type
External glue rod antenna

Support
Direct Mode, TDMA, Frequency Scanning, DTMF(Analog), CTCSS/CDCSS

Minimum Order: 500 pieces
