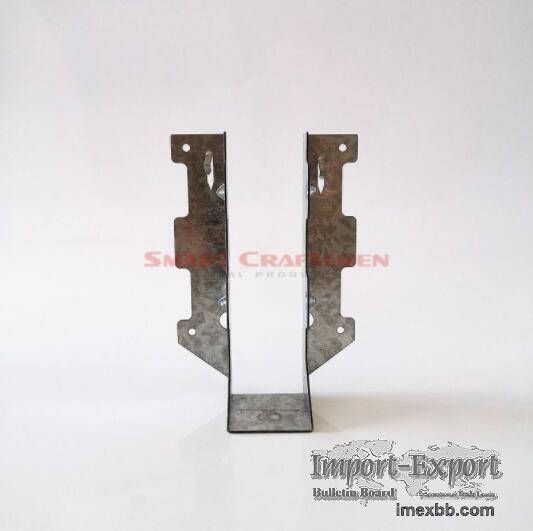

Timber Joist Hanger

Product Name: Timber Joist Hanger
Item Code: Smart Craftsmen-TJH
Process: Stamping / Punching / Bending
Raw Material: DX51D-Z275/G300-Z275 Hot Dipped Galvanized Steel Sheet or
Customized.
Package: 20/40/60 pieces / CTN or Customized.
Place of Origin: Hebei, China.
Delivery Port: Tianjin-China.
Product details
Smart Craftsmen Timber joist hangers are designed for situations where a
firm joint is required between members that meet at 90 degrees, for example,
the connection of truss/joist to beam, or the connection of frame to load-
bearing. The raw material is 1 2mm SGH340 Z275 / G300 Z275 / DX51D-Z275
galvanized
builder merchant products archives Specifications and functions
Joist Hanger 47 x 90: Designed for wood with a width of 47mm and a depth of
up to 150mm.
Joist hanger 47 x 120: Multifunctional bracket, suitable for standard wood
47 mm thick, with a maximum depth of 200 mm.
Joist hanger 47 x 190: For wood with a thickness of 47mm, the maximum depth
is 300mm.
Joist hanger 70x 180: A special size joist hanger designed for wood with a
size of 69mm wide.
Joist hanger 95 x 165: suitable for 94 mm wide timber or double joist/truss.
Note: Other designs and drawings can be produced according to customer
requirements.
other
All the above joist and hanger connections China should be fixed with nails
of diameter 30mm x 3.15mm or hexagon head screws of 17-12g x 35mm. Other
special hexagon head screws can also be provided.
