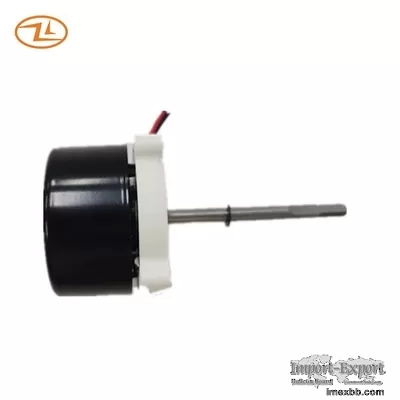

Three Phase Table BLDC Fan Motor Brushless 24V For Circulator

PRODUCT DESCRIPTION
BLDC Fan Motor Three Phase DC Motor 24VDC Table Fan Circulator Fan Use



Brushless DC motor can be mainly divided into two parts, motor and circuit
control. Motor is composed of rotor which its main component is permanent
magnet and of stator which its main component is silicon steel sheet and
copper wire.

Operating condition
Rated voltage 24VDC
Operating voltage 21.6~26.4VDC
Operating condition 0℃~40℃, RH 5%~95%
Storage condition -20℃~60℃, RH 5%~95%
Motor characteristics
Rated voltage 24VDC
Operating voltage 21.6~26.4VDC
Rated load 75mN.m
Rated speed(on load) 1800+/- 10% RPM
Rated current(on load) 0.20A max
Rotation direction CW(view from shaft side)
Working duty continuous
Position detection method FOC
Insulation resistance 10MΩmin. (500VDC)
Dielectric strength 600VAC/1S leakage current <=5mA
Temperature rise <65K
Speed control
PWM

PWM frequency: 15KHZ ~ 20KHZ

Duty cycle: 1%~99%

L level: 0~1.0V; H level: 2~5.5V;

Detecting method of motor speed
FG signal

L level: 0~0.5V; H level: 4.5~5.5V;

Max input/output current :5mA



Drawing:

Three Phase Table BLDC Fan Motor Brushless 24V For Circulator 0

Three Phase Table BLDC Fan Motor Brushless 24V For Circulator 1

Click to Enlarge
