Three Layer PP Adhesive Tape Extrusion Line For Mesh Bag Strap 800mm T Die

Description:

The plastic Tape extrusion line introduces and absorbs German advanced technology,
adopts PLC program control, frequency control and other advanced technologies. The
main electrical components are made of foreign high-quality products; the screw
barrel of the extruder is made of 38crmoaia high-quality steel; the cold water box
is made of high-quality stainless steel plate, the seven roller drawing machine is
gear box type, and the single wire drawing and shaping are made of foreign advanced
hot air oven, so that the main technical indexes of the unit can reach the
international standard, with high speed, high output, low energy consumption and
high efficiency The quality of monofilament is good. The whole unit has tight
structure, beautiful appearance, stable operation, sensitive and reliable control,
excellent manufacturing technology, convenient operation, safety and reliability.



The unit consists of the plastic extruder, filter, T-type die, cooling water tank,
traction unit, edge yam crusher, hot stretching oven, splitter unit,stretching and
fixing unit, winding machine, waste yarn recycling unit and electrical control
cabinet.





Specification:



Item SJPL-G100×33-800 SJPL-G110×33-1100 SJPL-G120×33-1300
SJPL-G130×33-1500
Max.extrusion 330kg/h 400kg/h 500kg/h 600kg/h
Screw Dia. Φ100mm Φ110mm Φ120mm Φ130mm
L/D 33:1 33:1 33:1 33:1
Screw RPM 20-120r/min
T die Lip length 800mm 1100mm 1300mm 1500mm
Max. line speed 450m/min
Tex. range 60-200tex
Draw Ratio 4-10
winder No.S 132 180 216 252

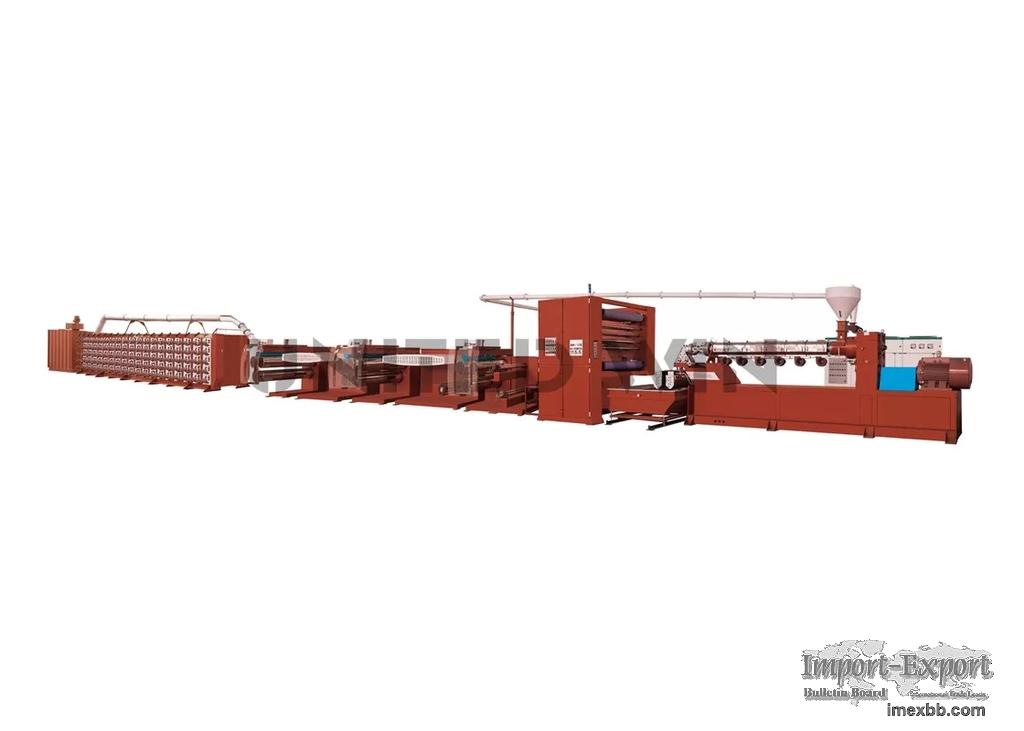

Machine Picture:





Three Layer PP Adhesive Tape Extrusion Line For Mesh Bag Strap 800mm T Die 0Three
Layer PP Adhesive Tape Extrusion Line For Mesh Bag Strap 800mm T Die 1
Three Layer PP Adhesive Tape Extrusion Line For Mesh Bag Strap 800mm T Die
Enlarge Click to Enlarge
