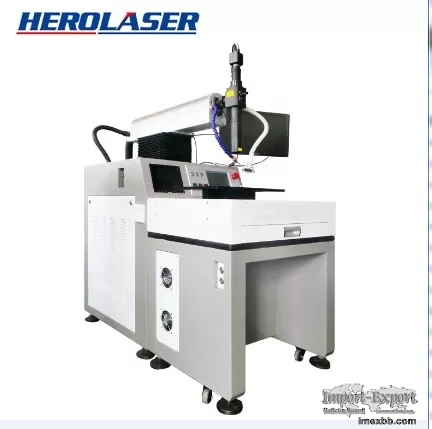

400W Three Dimensional Automatic Welding Machine For Precision Metal Welding
Ml-W200 can be customized according to the requirements of customers' products, and
can realize the welding of metal workpiece in any path such as straight line,
circle, etc., several shell of hand, cell phone battery, sensor, medical equipment
and other industries
Laser welding machine is to use high energy pulse laser to weld objects. The high
energy and high density of laser pulse can make the welding flat, the width of weld
is small, the heat affected area is small, and the precision welding which can not
be realized by traditional technology can be completed.
It is suitable for welding of aluminum, stainless steel, gold, silver, alloy, steel
and steel, and other materials.
Ml-w200 series welding machine is a laser welding machine developed and produced by
German welding machine technology. It is suitable for the welding of plane straight
line, arc and any track of various materials.
Application range: mobile phone battery, jewelry, electronic components, sensors,
clocks, precision machinery, communications, crafts and other industries.



Three Dimension 400W Automatic Laser Welding
Machine For Metal Welding 1



Laser Cleaning Machine for Rust,Oil,Resin,Dust,Stain,Coating,Plating,Oxidized
Surface Cleaning & Removal 100W/500W/1000W/2000W

Adopts the UK imported double lamp ceramic condenser cavity, corrosion resistance,
high temperature resistance, cavity life of 8-10 years
High production efficiency, fast welding speed, automatic production line can be
realized
The laser head can be rotated 360°, the whole optical path part can be rotated
360° and the front and back telescopic
Two - dimensional electric table, can adjust the diameter of the spot
Laser Cleaning Machine for Rust,Oil,Resin,Dust,Stain,Coating,Plating,Oxidized
Surface Cleaning & Removal 100W/500W/1000W/2000W



SN Item Parameter
1 Model ML-W400
2 Laser Working Substance ND: YAG
3 Rated Output 400W
4 Maximum Output 500W
5 The Laser Wave Length 1064NM
6 Photoelectric Range 0.2MM—3.0MM(Adjust)
7 The Pulse Width 0.1MS-20MS
8 The Depth Of The Weld ≤3MM
9 Pulse Frequency ≤100HZ
10 The Machine Power 12KM
11 Control System PC
12 Aimed At Positioning Microscope ,CCD , Red Light
13 Table Travel 200*200MM—1200*1200MM(Optional)
14 Demand For Electricity 380V/Three-phase power/50HZ/100A
15 Host System Size 1600*1200*1300MM
16 Cooling System Dimensions 1200*300*900MM


Laser Cleaning Machine for Rust,Oil,Resin,Dust,Stain,Coating,Plating,Oxidized
Surface Cleaning & Removal 100W/500W/1000W/2000W



acuum Cup stainless Steel Bowl Sensor Tungsten Filament
High Power Diode Triode Aluminum Alloy Laptop Case Cell Phone Battery
Door Handle Mould Electrical Accessories Filter
Nozzle Stainless Steel Products Golf Ball Head Zinc-Alloy Handicraft
