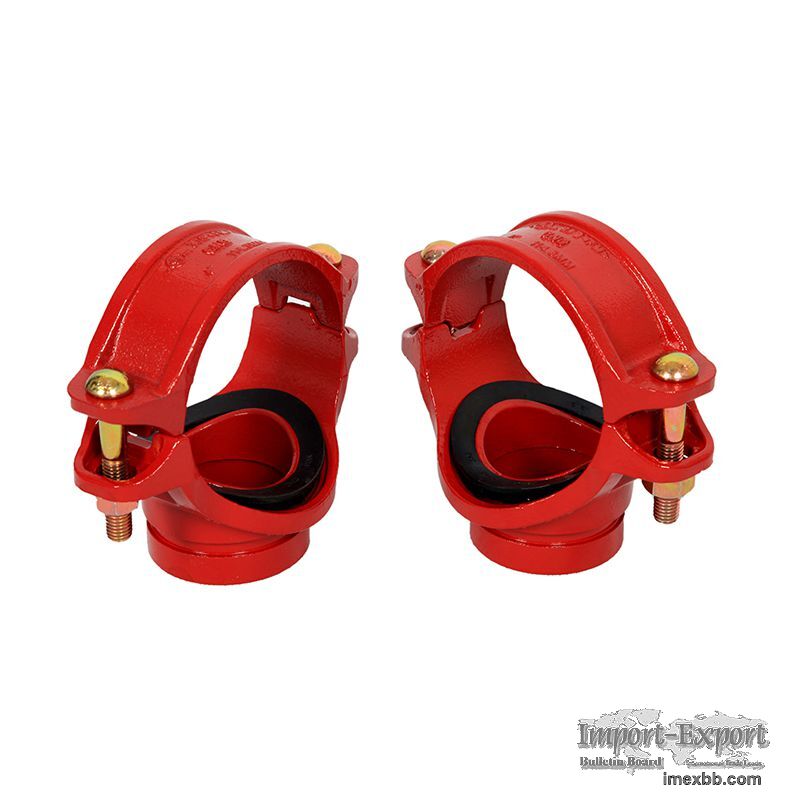

Threaded Mechanical Tee

The Threaded Mechanical Tee is a versatile pipe fitting designed to connect
branch lines to main pipelines without the need for welding. Featuring a
threaded outlet, this fitting simplifies installations in commercial and
industrial piping systems, making it an essential component for water
distribution, fire protection, HVAC, and more.
· Certificate: FM/UL/3C/CE,etc.
· Standard: ANSI/UL 213C
· Housing Material: Ductile iron conforming to ASTM A-536, Grade 65-45-12.
· Branch: Female thread, NPT / BSPT
· Bolt & Nut: Carbon steel
· Gasket: EPDM, nitrile, silicone rubber, etc.
· Rated pressure: 300~500PSI
· Surface: Hot dip galvanized/electrophoretic/epoxy powder painting
· Color: Variable colors for choice
Branch outlet fitting is another way of piping innovation, which is the use of
bolted connections branch pipe fittings. No need to weld directly from the
supervisor on the branch pipe. The method used is in the need to take over the
main branch pipe processing a round hole, fitted with branch outlet housing.
The opening must be secured on the centerline of the pipe and be mechanically
perforated by a dedicated opening.
