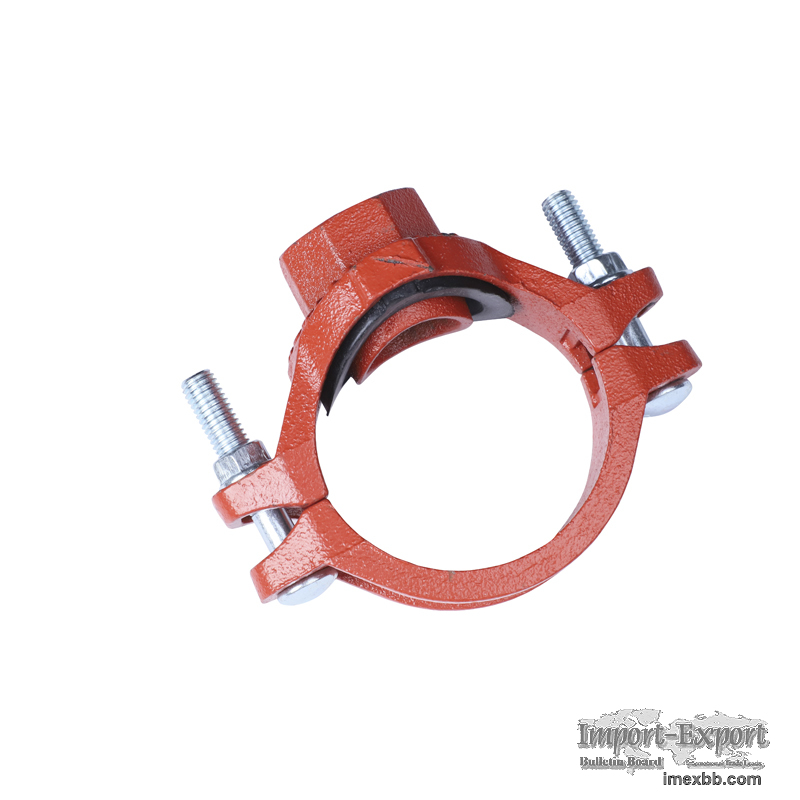

Threaded Grooved Mechanical Tee NPT Outlet

SHORT DESCRIPTION
Threaded grooved mechanical tee NPT Outlet with threaded outlet (302) provides a
direct branch connection at any location where a hole can be cut in the pipe. The
gasket is a pressure-responsive design that provides the seal.

PRODUCT DETAIL
What is the purpose of a mechanical tee?
Ductile Iron Grooved Fittings create outlets that exit pipes, but the outlet is
not necessarily the same size as the main pipe. Indeed, many mechanical tees are
reducing, meaning that the branch pipe is smaller than the main pipe. Outlet size
is also given in nominal pipe size, not actual size.
threaded mechanical tee provide a fast and easy mid pipe outlet the requires no
welding.
A direct branch connection can be made anywhere you can cut a hole in the pipe.
They are mounted to the pipe using a collar and provide a smooth flow area.
Gaskets conform to the O.D. of the pipe, they are of a pressure-responsive design,
so pipe fitting manufacturers provide a complete seal.
Allows easy creation of a BSP threaded branch outlet without using reducing tees,
couplings or welding.
2 1/2" (65mm) Female BSP threaded branch outlet
Red painted body in ductile iron with an EPDM rubber seal
FM (Factory Mutual) & UL certified
For use with 6" NB (165.1mm OD) & 2 1/2" NB (76.1mm OD) pipe
2x 5/8" bolts (105mm length) & hexagon nuts included.

Minimum Order: 10 pieces

Threaded Grooved Mechanical Tee NPT Outlet
