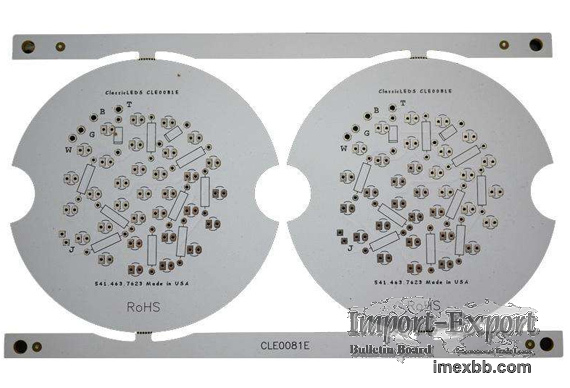

THE MOST BASIC CIRCUIT BOARD——SINGLE SIDED PCB
Single Sided Flex Pcb are the most basic PCB, the parts are concentrated on one side, and the wires are concentrated on the other side (when there are chip components, the same side as the wire and the plug-in device is on the other side). Because the wires only appear on one side, this type of PCB is called Single-sided (also known as one sided PCB). Because the single panel has many strict restrictions on the design circuit (because there is only one side, the wiring cannot cross and must go around its own path), only early circuits used this type of board.
Features of Single Pcb Boards The One Layer Pcb is the most basic circuit board of the PCB industry. The single sided PCB as the name implies is that the wires are on one side and the plug-in parts are on the other side. PCB single panels were widely used in various industries in the early days. However, due to the high wiring requirements of single side PCB, each line must have a separate path and cannot cross. For single sided flex PCB with many wirings, the stability is not enough and the performance is also missing. Gradually develop towards dual panels. Therefore, the usage rate and yield of PCB single panels are gradually decreasing; at present, PCB single panels are used more in power supply boards. The single-panel wiring diagram is mainly screen printing, that is, a resist is printed on the copper surface. After etching, it is marked with a solder resist. Finally, the part guide hole and punching process are completed. shape. In addition, some small and diverse products use a photoresist to form patterns. Usual Material of Single Sided PCB: HB XPC FR-1 FR-4 CEM-1 Certification: UL, ISO9001, ISO/TS16949: 2002, IS014001 and RoHS The Capacity of Production: 60, 000SQM. /month Parameters of Single Side PCB/Single-sided PCB Item Capabilities Number of Layers Single side Material CEM-1,FR-2,FR-1,FR-4,XPC-94HB PCB Thickness Min.thickness 0.8mm(32mil) Max.thickness 1.6mm(63mil) Surface finished Flux Nickel Plating Gold Plating Hot Air Solder Leveling(HASL) Entek Coating (OSP) Solder Mask Green,White,Black,Yellow,Red,Blue Other printing Silver through hole Carbon Print, Peelable Mask Carbon Through Hole Copper thickness 1/2 oZ(18 μm) - 1 oZ (35 μm) Min. Hole Size CNC-Drilled 0.4mm (16 mil) Punched 0.8mm (32 mil) Hole Size Tolerance (CNC Drilled) +/ -0.076mm (3 mil) Hole Size Tolerance (Punched) +/ -0.1mm (4 mil) Min. Line Width and Spacing 0.2mm (8 mil) Min. Solder Mask Clearance (UV Cure) 0.15mm (6 mil) Min. Solder Mask Clearance (Thermal Cure) 0.1mm (4 mil) Min. Annular Ring 0.15mm (6mil) Profile and V-Cut Stamping, V-Cut and Beveling,CNC Warp & Twist ≤ 0.7%
Looking for Single Sided Pcb manufacturer?
SPEEDA Technology is an electronic technology company formed by a team with an average of 10+ years of electronic industry experience. As one of the best chinese pcb manufacturer, the company is mainly engaged in the design, R&D (research and development), manufacturing, and sales of various printed circuit boards. The products are widely used in communication equipment, computer and network equipment, consumer electronics, automotive electronics, industrial control, new energy, rail transit, and other industries. We provide customers with a "one-stop" service, that is, an integrated service system consisting of printed circuit board design optimization, small-batch sample production, batch production, and after-sale services. Adhere to quality first, service first, to improve customer satisfaction as the goal continuously.
SPEEDA, Your Best Business Partner.
