The cheapest OEM and ODM Speed Gate turnstile gate in China

Aneiz G10 Speed Gate-Support OEM and ODM. Support third-party biometric
devices, such as fingerprint scanner, face recognition camera. RFID card
reader, QR code scanner.

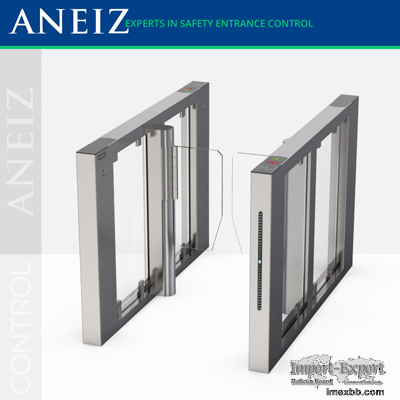

Aneiz G10 Speed Gate is a high performance pedestrian control turnstile.
Usually used in high pedestrian traffic flow in both directions to control
pedestrian entry or exit in restricted areas
304 Stainless steel material, durable, high quality, for long lasting use.
The Aneiz G10 Speed Gate features designed with standard relay signal,
which can integrate easily to any kind of access control and fire systems
through I/O (dry contact).
In case of emergency, when power goes off both directions are free.
Passing Direction: Single directional / Bi-directional.

FEATURES
Aneiz G10 Speed Gate - Compared to tripod turnstile, speed gate offers
wider opening passageway 600mm-900mm to cater for bigger size pedestrian,
wheelchair, luggage and big parcel to pass through easily..
Aneiz G10 Speed Gate - Swing arms will automatically open during power
failure. Speed gate also can be triggered to permanently open during
emergency to facilitate fast evacuation. This is complying with fire safety
requirements.
Aneiz G10 Speed Gate - Support the fastest 0.2sec opening time to support
higher traffic rate that can effectively reduce long queue at entrance
during peak hour. You can also lower the speed to cater for small children
or old people.
Aneiz G10 Speed Gate - The turnstile designed with consolidated and more
durable mechanism, will not break even someone collide it, anti-collision
and anti-kick function.
Aneiz G10 Speed Gate - Swing arms will close automatically if there is no
pedestrian passing or passenger delay to entry.
IR sensors detect unauthorized or abnormal access. Alarm buzzer function
will be triggered when the user is passing thru without authorization, tail
gaiting, illegal intrusion or incorrect direction.
Aneiz G10 Speed Gate -Multiple Operating Modes-optional
IC/ID card, key fob, QR/bar code, face / fingerprint / finger vein
biometric recognition, push button, ESD, wireless remote control, insert
coins / card / wristband, digit counter...


Aneiz G10 Speed Gate TECHINCAL SPECIFICATION
Material 304 Grades Stainless Steel
Cabinet Dimension 1500(L) X 100(W) X 1000(H)mm
Arm Material Plexiglas-transparency
Passage Width 600mm standard lane
900mm handicapped lane
Throughput 45 to 55 people per minute
Response Time ≤0.2S
Net Weight 80kg/pcs single core
100kg/pcs double core
Directional Mode Uni-directional or bio-directional
IR Sensor 6 pairs (standard)
Power Supply AC220V/110V, 50/60Hz
Power Voltage 24V DC
Power Consumption 20W
MCBF 15 million
Operating Temperature -20 °C - 75 °C
Operating Environment Indoor or outdoor (need with shelter)
Relative Humidity ≤ 90%
LED Indicators Red cross means gate open,
Green arrow means gate closed
Warranty 18 Months

Minimum Order: 1 sets
