TGJS-303A Splitter Type Fiber Optic Splice Closure

As a fiber optic products supplier in the industry, TUOLIMA focuses on brand
customization, multi-selective product logo printing, high-end and independent
packaging design, to provide customers with a one-stop service that is quite
trusted by professionals worldwide.

The body of this closure splitter box is made of fiberglass and PP as
customer's request that has extremly high tensile strength, waterproof and
dustproof protection function, reaching IP68.

This joint closure optic splitter box can be equipped with 1*16 Mini splitter&
1*16 card type splitter and 16 SC adapters. It can be mounted wall, aerial or
holding-pole with one or two pieces of metal board tightly attached onto the
cable or pole.

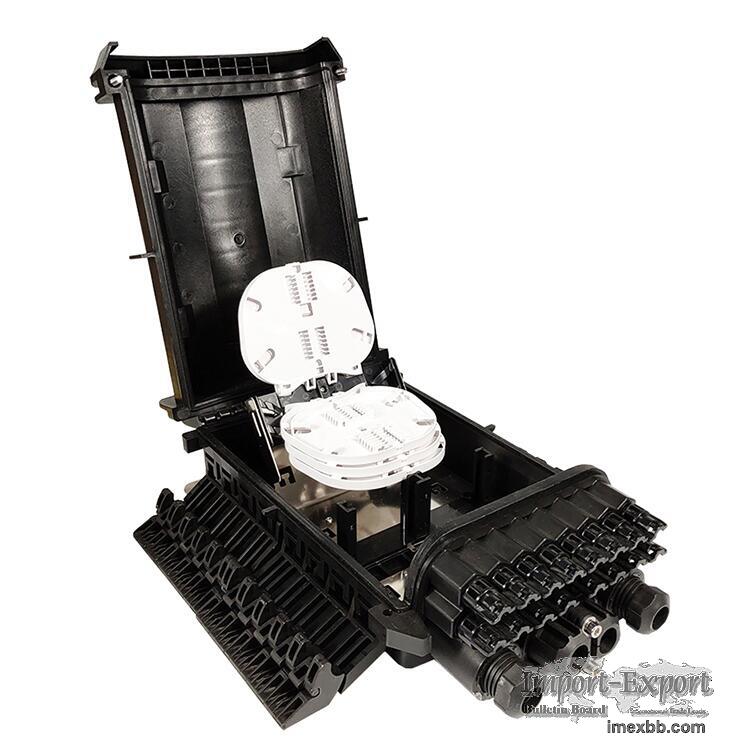

Details of TGJS-303A Splitter Type Fiber Optic Splice Closure
Inside Splitter place look: Could install a 1x16 mini splitter or a 1x16 card
type splitter
Inside splice tray look: 24 core/tray, 4pcs trays
Stainless steel accessory
Complete installation accessory for wall mounting(holding-pole accessory
should contact sales)

Specification of TGJS-303A Splitter Type Fiber Optic Splice Closure
Dimension（mm） 380×245×130 Max. capacity(Single fiber) 16
Weight（kg） 4.5~5 Sealing type Mechanical
Cable ports 1 input cable port for un-cut cable from diameter
from10~17.5mm. 2 output cable ports for cable diameter from 8~17.5mm.
16 output cable ports for cable diameter less than 4mm. Single splice tray
capacity(Single fiber) 16
Splice tray quantity 2pcs

Packing And Comments Of TGJS-303A Splitter Type Fiber Optic Splice Closure
This equipment packaging produced by TUOLIMA is moisture-proof and earthquake-
proof. The accessories are packed first plastic bags, then into the boxes with
plastic bags for sealing. There are moisture-proof and earthquake direction
signs outside the boxes.

It can't be inverted in the transport and be free from rolling when carrying.
Please load carefully and prevent the collision. You should prevent it from
heavy rain before installation. The temperature in the transport should be
controlled between-35℃ to +55℃.

The excessive accumulation of goods should be stored on the cartons. The
treasury should away from the erosion of corrosive gas equipment and the
temperature should be below 45℃ and higher than -5℃, and relative temperature
should not be high in long-term(generally less than 75%).
Package dimensions(W*H*D) 520mm*420mm*330mm
Package material Standard carton for sea shipping or air express
Weight 4.5kgs
