Tensile Strength Tester

Introduction

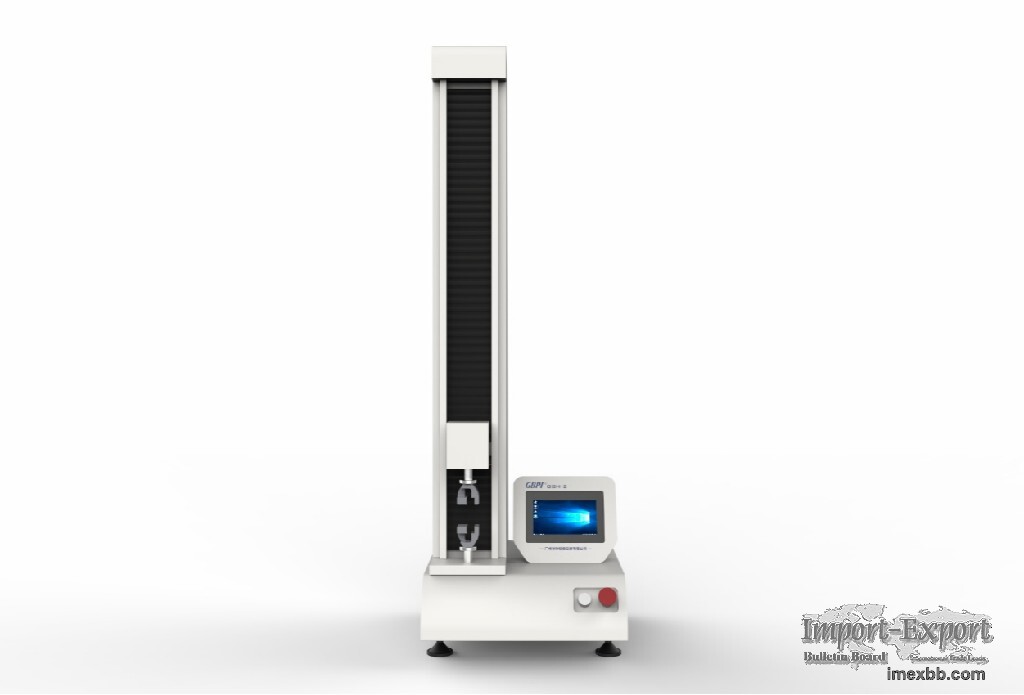

GBH-2 multifunctional single-column electronic tensile tester for plastics,
plastics, films, fibers, rubber sheets, composite materials, tapes, soft
packaging materials, paper, non-woven fabrics, medicine package materials,
syringes, bottles covers, rubber plugs and other packaging materials are
tested for mechanical properties to meet the needs of different users.

Application

1. Basic experiments (experiments such as stretching, puncture, peeling,
shearing, bending, tearing, heat sealing, stretching (with extensometer),
sliding properties, etc.);

2. Medicine package material (metal) experiment (aluminum cover opening
force, plastic removal force, tearing force, etc. );

3. Drug package material (plastic) experiment (experiments such as pull ring
opening force, puncture dynamic retention force, puncture force, etc.);

4. Medicine bag material (prefilling type) experiment (needle puncture
force, piston sliding performance, adhesion, body tightness, etc.);

Features

1. Multifunctional configuration (provide customized service)

3. Advanced configuration and technological advancement

4. Easy to operate

5. Authority management and data tracking

6. Software system

7. Diversified application of fixtures

Standard：

GB/T8946、GB 8808、GB 13022、GB/T1040、GB4850、 GB/T 7753、GB/T 7754、
GB/T 453、GB/T17200、GB/T16578.1、QB/T1130、GB/T 2791、GB/T 2790、GB/T
2792、GB/T 7122、GBT 10004、GB/T 17590、 JJG 139、GB/T 6344、GB 10808、
YBB00112003、YBB00102003、YBB0013200 , 2、YBB00202004、ASTM D828、ASTM E4、ASTM
D882、ASTM D1938、ASTM D3330、ASTM F88、ASTM F904、ISO 37、JIS P8113、QB/T
2358

Technical parameter：

Item

Technical parameter

Force range

0～500N，（0-1500N is available）

Testing speed

0～500mm/min

Test stroke

750mm

Force resolution

0.001g

Displacement resolution

0.01mm

Force measurement accuracy

Within ±0.5% of the indicated value

Displacement accuracy

Within ±0.5

Effective test stroke

750mm

Standard sizes

L×W×H:460cm×525cm×1430cm

P , ower

AC 220V，50Hz

Weight

86Kg
