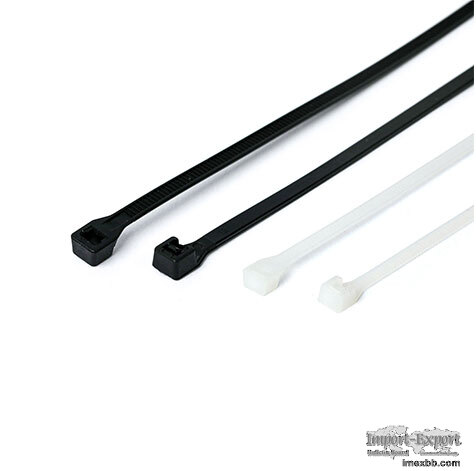

Tensile Enhanced Cable Ties

Bundling and heavy duty for more range use;

Material of high strength zip ties: NYLON 66 ONLY. Supplied by ASCEND AND
INVISTA;

High strength zip tie product tensile is 25% bigger than same width cable tie;

Strong plastic ties is used to secure a cable bundle to another thins;

UV Black Stabilized Nylon 6/6 is used in continuous or extended exposure to
outdoor sunlight;

Curved tip is easy to pick up from flat surfaces and allows faster initial
threading to speed installation.

Hont nylon cable tie manufacturer offers a variety of tensile enhanced cable
tie types for you to choose from, for example, assorted zip ties, mixed cable
ties, multi purpose ties, little zip ties, short cable ties, tiny cable ties
and soft cable ties.

National Invention Patent(China)

United States, Ruissa, Mexico, Europe (22 countries) Registered Patents
Applications of Hont Patent-tensile Enhanced Cable Tie
Ideal Applications:

Extra strong zip ties can be used in Color coding, Identification, Packaging
Continuity, and Bundling Aesthetics.;

General Application:

extra strong cable tie is widely used to bundle cable and wire or other things
in the industry of electrical & electronic, lighting, hardware, pharmaceutical,
chemical, computer etc.

Drawings of Cable Tie

Technical Specification Of Tensile Enhanced Cable Ties
Item No. Length Width BUNDLE DIAMETER (mm) TENSILE STRENGTH
INCH mm mm LBS KGS
HTA-2.5X60 2.4" 60 2.5 2-11 24 11
HTA-2.5X80 3.2" 80 2-16
HTA-2.5X100 4.0" 100 2-22
HTA-2.5X120 4.7" 120 2-30
HTA-2.5X150 6.0" 150 2-35
HTA-2.5X160 6.3" 160 2-40
HTA-2.5X200 8.0" 200 3-50
HTA-3.6X110 4.3" 110 3.4 3-25 50 22
HTA-3.6X140 5.5" 140 3-33
HTA-3.6X150 6.0" 150 3-35
HTA-3.6X180 7.1" 180 3-42
HTA-3.6X200 8.0" 200 3-50
HTA-3.6X250 10" 250 3-65
HTA-3.6X280 11" 280 3-70
HTA-3.6X300 12" 300 3-80
HTA-3.6X370 14.6" 370 3-105
HTA-4.8X120 4.7" 120 4.4 3-30 65 29
HTA-4.8X160 6.3" 160 3-40
HTA-4.8X180 7.1" 180 3-42
HTA-4.8X190 7.5" 190 3-46
HTA-4.8X200 8" 200 3-50
HTA-4.8X250 10" 250 3-65
HTA-4.8X280 11" 280 3-70
HTA-4.8X300 12" 300 3-80
HTA-4.8X350 14" 350 3-90
HTA-4.8X360 14.2" 360 3-94
HTA-4.8X370 14.6" 370 3-98
HTA-4.8X380 15" 380 3-102
HTA-4.8X400 16" 400 3-105
HTA-4.8X430 16.9" 430 3-120
HTA-4.8X450 17.7" 450 3-130
HTA-4.8X500 19.7" 500 3-150
HTA-7.2X150 6" 150 7.2 3-35 150 72
HTA-7.2X200 8" 200 3-50
HTA-7.2X250 10" 250 4-65
HTA-7.2X280 11" 280 4-78
HTA-7.2X300 12" 300 4-80
HTA-7.2X350 14" 350 4-90
HTA-7.2X370 14.6" 370 4-98
HTA-7.2X380 15" 380 4-100
HTA-7.2X400 16" 400 4-105
HTA-7.2X450 18" 450 4-110
HTA-7.2X500 20" 500 4-150
HTA-7.2X530 20.9" 530 4-160
HTA-7.2X550 21.6" 550 4-165
HTA-9.0X400 16" 400 9 8-105 230 104
HTA-9.0X450 18" 450 8-118
HTA-9.0X500 20" 500 8-150
HTA-9.0X550 21.6" 550 8-160
HTA-9.0X600 23.6" 600 8-170
HTA-9.0X650 25.6" 650 8-185
HTA-9.0X720 28.3" 720 10-195
HTA-9.0X800 31.5" 800 10-230
HTA-9.0X900 35.5" 900 10-265
HTA-9.0X1000 40" 1000 10-300
HTA-9.0X1100 43.3" 1100 10-335
HTA-9.0X1200 47.2" 1200 10-370
HTA-12X540 21.2" 540 12 8-155 325 150
HTA-12X650 25.6" 650 14-185
HTA-12X900 35.5" 900 14-265

Click to Enlarge
