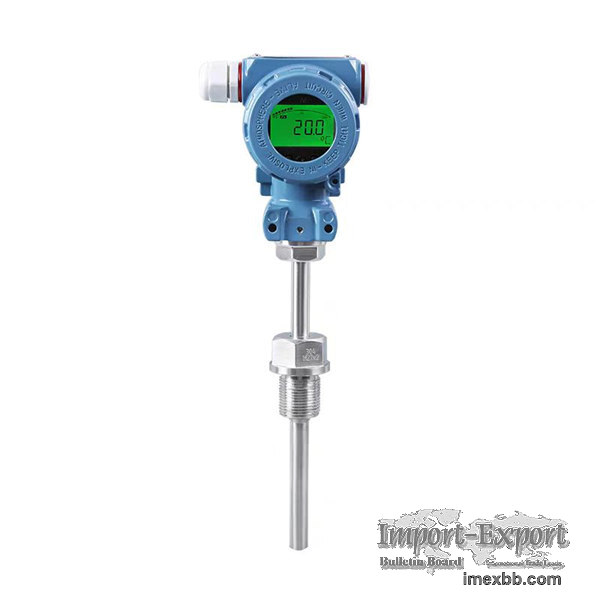

Temperature Transmitter

Temperature transmitter adopts thermonuclear, RTD as temperature measuring
element, the output signal from the measuring element to the transmitter
module, after the regulator filter, operational amplifier, nonlinear
correction, V / I conversion, constant current and reverse protection After the
circuit is processed, it is converted into a constant current signal output of
4-20mADC or 0-10mADC, which has a linear relationship with temperature.
Advantage
Long transmission distance, strong anti-interference ability. Cold end,
temperature drift, non-linearity automatic compensation.
High measurement accuracy and good long-term stability.
The temperature module adopts epoxy resin casting process inside, which is
suitable for use in various harsh and dangerous places.
Integrated design, simple and reasonable structure, can directly replace the
ordinary assembly thermocouple, RTD.

Specifications
Parameter Description
Standard range (k)0~1200℃,(E)0~800℃，(S)0~1600℃，(B)0~180 , 0℃
Output 4~20mA, 0~5V, 0~10V
Protocol RS232, RS485, HART
Accuracy ±0.25%，±0.5%
Application Liquid,gas,steam
Protection pipe material 1Cr18Ni9Ti,ceramics,steel tube
Installation M12*15,M20*15,M27*2,or other type you need
Load 0~500Ω
Voltage 10~45V
Explosion proof DIIBT6
Protection IP65,IP67
Display Without display/LED/LCD
