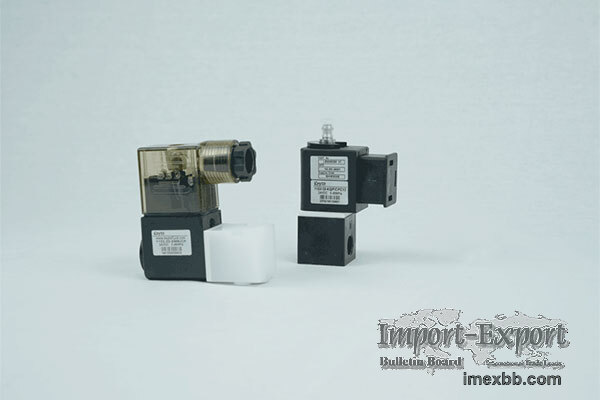

Temperature & Pressure Resistant Solenoid Valves

Temperature & Pressure Resistant Solenoid Valves is a small-diameter diaphragm
solenoid valve independently researched and developed by Keyto. Its main
function is to realize the opening and closing of the liquid circuit, and it is
resistant to strong acid and alkali corrosion, high temperature, and high
pressure. This series can withstand different reagents under different working
conditions. It is a high-performance, low-cost, maintenance-free diaphragm
solenoid valve.

Types of Temperature & Pressure Resistant Solenoid Valves
Temperature & Pressure Resistant Solenoid Valve 1011
1. Mediums including water, air, strong acid-base reagents and organic solvents
2. Suitable for applications with high temperature and high pressure, strong
acid-base reagents with many impurity crystallization

Temperature & Pressure Resistant Solenoid Valve 1012
1012 series has two options: a two-way valve or a three-way valve. The main
difference between 1012 and 1011 is the type of diaphragm. 1011 series is the
assembled diaphragm, 1012 series is the translational diaphragm.

Miniature Piston Valve 1122
1122 series piston valve can resist ink and other cleaning agents, mainly used
in the printing industry. It is especially suitable for air, ink, organic
solvent, and other applications requiring a high-speed response.


Features of Temperature & Pressure Resistant Solenoid Valves
01
Long span.

02
Anti-corrosion.

03
Wi , thstand high temperature and high pressure.

04
Suitable for applying with air, water, some of the organic solvents in the
environments of high temperature and high pressure.

Micro High Temperature Solenoid Valve VS Micro Low Temperature Solenoid Valve

The differences of micro high pressure solenoid valve and micro low temperature
solenoid valve are as follows:

The high and low-temperature valves here usually refer to the circulating
medium's temperature, not the working environment's temperature. When the
complex liquid reacts in the flow path, it is easy to produce an internal
environment of high temperature and pressure. At this time, there are high
requirements for the material and internal structure of the solenoid valve.
Keyto 1011, 1022 high-temperature and high-pressure valve series provide
reliable materials and stable structures to cope with different working
conditions and can withstand medium temperatures up to 220 ° C.
