Telescopic Universal Joints Flange Type Universal Joint Shafts

Telescopic universal joints contain a telescopic intermediate element that
allows for simpler and faster repositioning compared to double universal
joints. The length can be easily adjusted in axial misalignment.

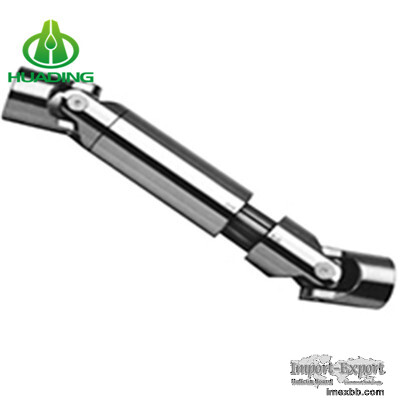

Telescopic Universal Joint Description

A telescopic universal joint consist of two gimbals, essentially an extended
double joint that addresses distance and offset issues between the driver and
driven load.

HUADING telescopic universal joints are available in a variety of sizes, with
heat and corrosion resistance, and we can provide shorter or longer lengths for
special orders.

Advantage:
1. Low life-cycle costs and long service life;
2. Increase productivity；
3. Professional and innovative solutions；
4. Reduce carbon dioxide emissions, and environmental protection;

Model:
WSP Type Universal Joints
· D: 22mm - 95mm
· d1, d2 (H7): 10mm - 50mm
· L2: 48mm-190mm
· Max rotate speed reach 4000r/min

Features:
1. It is suitable for transmission coupling space on the same plane of two
axis angle beta β≤45°, the nominal torque transmission 11.2-1120N.
2.The WSD type is a single cross universal coupling, and the WS type is a
double cross universal coupling, the WSS type is a telescopic universal
coupling.
3.Each section between the largest axis angle 45º.
4.The finished hole H7, according to the requirements of keyseating, six square
hole and square hole.
5.The angle between the two axes is allowed in a limited range as the work
requirements change.

FAQ
Q 1: Are you a trading company or a manufacturer?
A: We are a professional manufacturer specializing in manufacturing
various series of cardan shafts.
Q 2:Can you do OEM?
Yes, we can. We can do OEM & ODM for all the customers with customized artworks
in PDF or AI format.
Q 3:How long is your delivery time?
Generally, it is 20-30 days if the goods are not in stock. It is according to
quantity.
Q 4: Do you provide samples? Is it free or extra?
Yes, we could offer the sample but not for free. Actually, we have a very good
price principle, when you make the bulk order the cost of the sample will be
deducted.
Q 5: How long is your warranty?
A: Our Warranty is 12 months under normal circumstances.
Q 6: What is the MOQ?
A: Usually our MOQ is 1pcs.
Q 7: Do you have inspection procedures for coupling?
A:100% self-inspection before packing.
Q 8: Can I have a visit to your factory before the order?
A: Sure, welcome to visit our factory.
Q 9: What's your payment?
A: T/T.

Huading supply Custom Universal Joints. Our custom u joints can be made from
most metals, in sizes ranging from 3/8″ to 4″ O.D. If you need it, please
contact us immediately.
