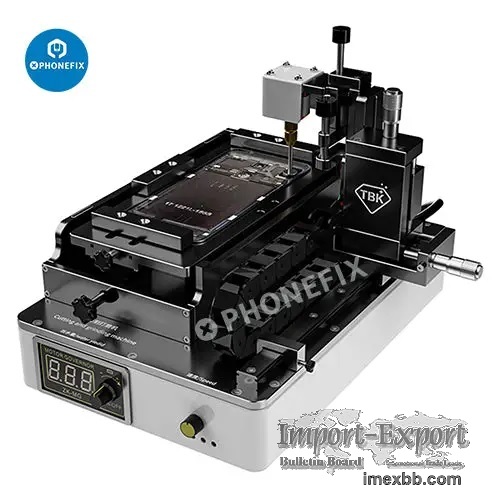

TBK918 Intelligent Cutting and Grinding Machine

TBK-918 Smart Cutting And Grinding Machine for Phone Repair Cutting Tools
Curved Screen IC Grinder Back Cover Glass Polishing,TBK 918 2in1
Intelligence Cutting Grinding Machine for Phone Repair,TBK918 intelligent
cutting and grinding machine, mobile phone curved screen cutting, chip
grinding all-in-one machine, high-precision adjustment, simple operation.

TBK 918 Intelligent Cutting&Grinding Machine for Mobile Phone Motherboard
IC/Camera Frame/Back Cover

Features:
Mobile phone maintenance intelligent cutting curved screen grinding chip
all-in-one machine
High precision multi-directional limit free adjustment high-speed aero
motor
Free switching between cutting and grinding, one machine for two purposes
Cutting curved screen and polishing IC chip flexible switching
Aviation brushless motor, high reliability, step-less variable, frequency
speed regulation
Low energy consumption and low noise
Limit suspension cutting screen, flexible cutting of straight screen-curved
screen multiple screens
Multiple protection/Limit cutting piece/Safe and reliable
Cutting multiple adjustments, adaptive to different heights, suspension
limit cutting retine on
Water bottle rack design, place water bottle, easy to catch water, not easy
to fall
Equipped with emery grinding head, precise grinding depth
The proper amount of water can be adjusted, to reduce dust flying, increase
cutting heat dissipation
Stepless regulating motor speed
The platform can tilt left and right, convenient for work
Adjust fixed mobile phone Convenient for work
Adopt a linear guide rail and add a bilateral stop block
The water inlet can be connected outlet
The motor can be adjusted left and right, and precise positioning


Specification:
Brand: TBK
Product model: TBK-918
Product voltage: 110-220V
Product power: 100W
Net weight: 6kg
Product size: 20*30*22cm
Gross weight: 8kg
Product packaging: 26*36*25cm

How to Use:
Cutting:
Connection (power line, motor line, water interface)
Install the cutting motor
Put the mobile phone into the working platform (adjust the tilt and fix the
mobile phone)
Adjust the position of the mobile motor (adjust the motor down and the x-
axis to make the mobile motor reaches the corresponding cutting position)
Adjust the bilateral limit block(limit the working range of the mobile
motor according to the length of the mobile phone)
Put the mineral water bottle on the water bottle rack(connect three water
volume corresponding interfaces)
Turn the water volume switch and motor switch
Move the motor to work (if you can't see clearly, you can turn on the light
switch)
Polishing:
Connection (power line, motor line)
Install the grinding motor
Put the mobile phone into the working platform (adjust and fix the mobile
phone)
Measure the depth to be polished
Adjust the position of the mobile motor (adjust the motor down and the x-
axis to make the mobile motor reaches the corresponding grinding position)
Adjust the bilateral stop block(limit the working range of the mobile motor
according to the grinding length)
Adjust the grinding depth limit(for the depth measured in front, take the
corresponding feeler gauge size limit)
Turn the motor switch
The mobile motor starts to work (if you can't see clearly, you can turn on
the light switch)


Package includes:
1 x Cutting & Grinding Machine
1 x Power cable

Minimum Order: 1 pieces
