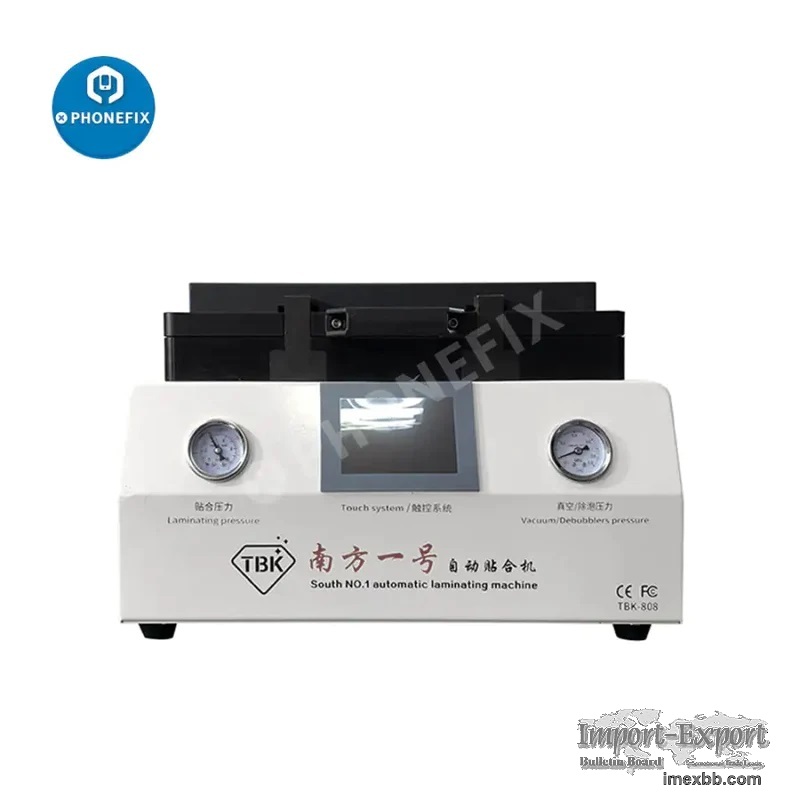

TBK Vacuum Laminator Bubble Remover Automatic LCD Screen Repair

Vacuum Laminator Bubble Remover TBK-808 Automatic LCD Screen Repair
Laminating Machine With Bubble Remover,Automatic Laminating Machine TBK 808
for iphone for Samsung curved screen repair.

TBK-808 This is laminating remove bubble with automatic lock gas,no need
connect air compressor and vacuum pump,automatic evacuate,laminating and
remove bubble,automatic lock door can do one time,cand 100% no bubble.

TBK-808 LCD Touch Screen Repair Automatic Bubble Removing Machine OCA
Vacuum Laminating Machine with automatic lock gas

Specifications:
Mode：TBK-808
Po , wer Supply: 110/220V
Power: 800W
Product Size: 400*350*250 mm
Weight: 42kg

Features:
Button start Easy to operate
14" Large laminating area
Easy to use, English and Chinese models can be choosed, by touch screen
Best quality;
Widely used for mobile phone LCD Refurbishing;
Pressing force uniform, no bubbles.

Operation guid：
1.First set vacuum time 15s,laminating 35s,remove bubble 3 min,temperature
40℃
2.Press"automatic"start pre-heating
3.Open laminating door
4.Tear protect film and take inside the mould
5.Take glass with frame on LCD
6.Click LCD centre when in right position
7.Put laminating mould on LCD
8.Take LCD corner something out,prevent broken LCD
9.Take glass inside in laminating zone
10.Then lid on,press start.
11.After wait setting remove bubble time,automatic exhaust
12.Take screen out,finish.

Package List:
1 x TBK-808 Bubble Removal Machine
1 x Power Cable

Minimum Order: 1 pieces
