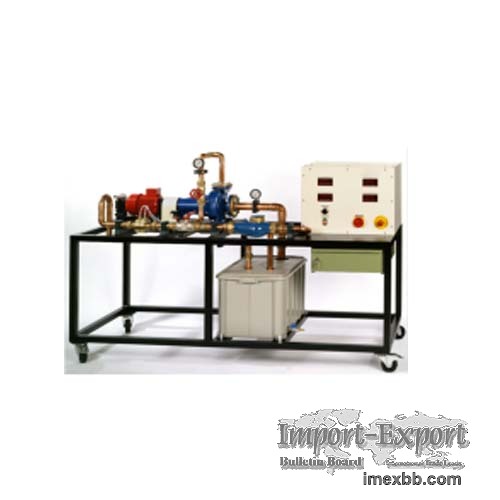

TB-220726-V-102 Piston Pump Training System

The System Should Cover the Following Training Objectives:
Study of principle of operation of a piston pump
Recording of pump characteristics
Study of pressure curves of delivery pressure and cylinder pressure
Effect of pulsation damping
Investigation of P-V diagram
Determination of efficiencies
Minimum Technical Specifications Required (like or better than):
Closed water circuit system
Should include frequency converter to adjust the speed of piston pump
Transparent water tank
Needle valve for adjusting the flow rate
Adjustable head via overflow valve: 0.2 to 2bar
Pulsation damping of the head using air vessel with bleed valve
Sensors for pressure at outlet and in the cylinder of the pump, flow rate and
crank angle
Integrated microprocessor-based instrumentation
