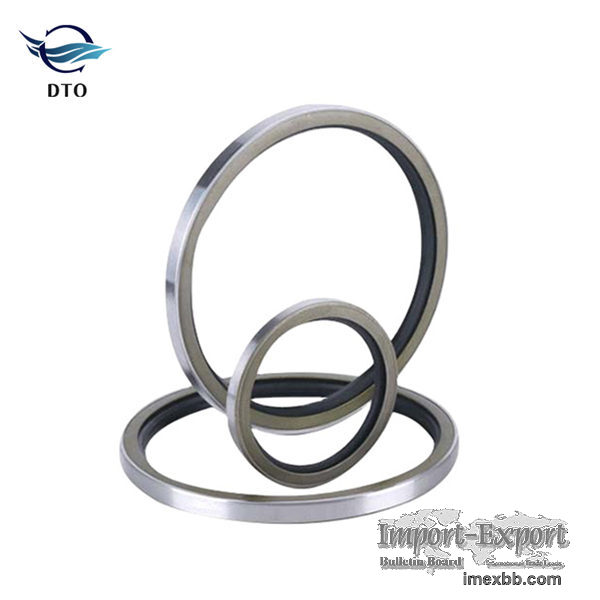

TA Oil Seal

The T type oil seal is specially designed for large diameter and non-precision
machined mounting surfaces, which can effectively adapt to the requirements of
oil sealing holes. It should be noted that in the case of sealing low-viscosity
fluids or gases, the static sealing effectiveness of the outer edge of the
metal skeleton and the inner wall of the container may be limited. One of the
main features of the oil seal is that it is equipped with a dust-proof lip
structure, which can not only effectively prevent the pollution of the
conventional dust on the medium, but also prevent the intrusion of external
impurities, thus ensuring the cleanliness and efficiency of the system.
TA Oil Seal Appearance: Double iron housing with built-in spring for the lips
Shaft Movement: rotate
Material Classification: NBR, ACM, VMQ, FKM
Sealing Medium: Lubricating oil
Main Application: Seal for oil and dust situations (maximum pressure 0.03MPa)
Application Scenarios of TA Oil Seals
Heavy equipment: such as mining machinery, construction machinery, port
loading and unloading equipment.
