Supplier Wholesale ISO4064 Class B Irrigation Ductile Iron Flanged Woltman

Basic Info.
Model NO.
Bulk Water Meter
Nominal Diameter
Big Diameter
Application
Civil, Industrial
Principle
Volumetric Meter
Medium Pressure
General Water Meter
Work Environment
Liquid Sealed Water Meter
Stucture
Intelligent IC Card
Size
15mm-600mm
Transport Package
Box, Carton, Pallet
Specification
DN15-DN600
Trademark ,
SOLID
Origin
Shanxi, China
Production Capacity
100000 Pieces/Month
Product Description
SPECIFICATION:

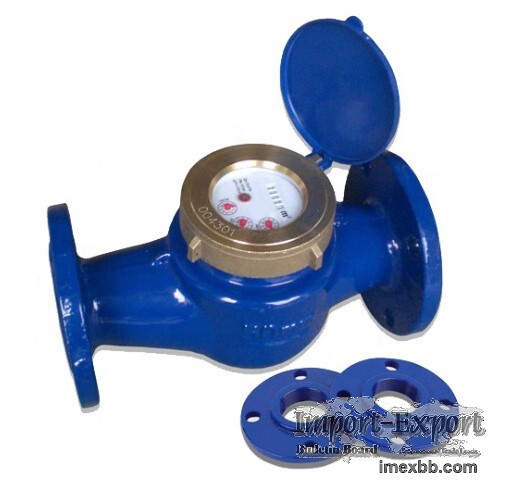

Woltmann water meter is a full helix type,magnetic drive,dry dial water
meter with an interchangeable measuring unit.It has the advantages of small
resistance,negligible head loss,big capacity,excellent accuracy,high
measuring capacity,and long life if service.The measuring unit with sealed
indicator offers the meters with very clear reading condition.This series
can be equipped with a kind of remote transmission device.The generating
volume is 0.3m³/Pulse and 1m³/Pulse.

Item Specification
Operating condition PN: 1.0/1.6 Mpa (10/16bar)
The water temperature cold water up to 50ºC and hot water up to 90ºC
Standard ISO 4064 Class B
Material Cast iron
Size DN40 - DN600
Pressure loss ΔP25
Features:

1.the material is Environment Friendly

2..warranty: 2 years

3.Supply ability:100000 pcs per month

4.Free sample one piece is avaible ( but you need pay to us the sample fee
and freight charge first to show the sincerity to coopertae with each other
and we will return back the sample fee to you when we order to us

Application:
--Measuring the volume of cold (hot) water passing through the pipeline.
Feature:
--Removable element structure, easy installation and maintenance, register
for universal use within this range detachable
without Removing the meter from the pipeline;
--Dry-dial, Magnetic drive sensitive action, small pressure loss;
--Vacuum sealed register ensures the dial keep free from fog and Keep the
reading clear in a long term service;
--Selected high quality materials for steady & reliable characteristic;
--Technical data conform to international standard ISO 4064.

WORKING ENVIRONMENT:
Water temperature: 0.1°C~40°C (( 0.1°C~90°C forhot water meter)
Water pressure: ≤1Mpa(1.6MPa forspecial requirement)

Minimum Order: 1 pieces
