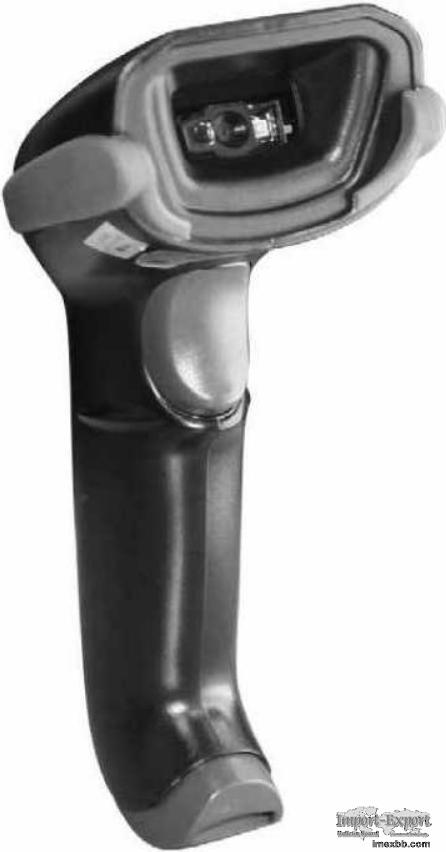

Superlead High-performance Handheld Scanner 3300

Large scanning window of the hp handheld scanner
Self-inductive influence reading
Support sports reading, sensitive scanning
Support barcode reading without backlight
3 working modes ( normal mode, mobile phone model, fast-moving mode )
Multi-language barcode information direct transmission

Details of Superlead High-performance Handheld Scanner 3300
SuperLead

3300

2D Area Imager

Cost-effective

Multiple Language Barcode Message Transfer
Object Auto Sense
Accurate Aimer
Read all Mainstream 1D/2D Barcodes
Cellphone Sscreen 3arcode Reading
Extremely Easy to Use
Specification of Superlead High-performance Handheld Scanner 3300
SuperLead 3300
Technical Specification
Physical Characteristics
Weight: 160g
Voltage: 5VDC
Current: 400mA
Performance Characteristics
Image(Pixels): 640 pixels(H) x 480 pixel(V)
Light Source: Aiming: 617 nm LED; illumination: 6500K LED
Field of View: 40°(H) x 35°(V)
Roll/Pitch/Yaw: 360°,±65°,±60°
Print Contrast: 25% minimum reflective difference
Motion Tolerances: up to 25 in. (63.5cm) per second
Interfaces Supported: USB,RS232
Symbology Decode Capability
/1-D UPC, EAN, Code 128, Code 39, Code 93, Code 11. Matrix 2 of 5, Codabar
Interleaved 2 of 5, Mis Plessey, GSI DataBar, China Postal, Korean Postal ,etc
/2-D PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec,
Hanxin, etc.
User Environment
Operating Temperature: 0°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity: 0% to 95% relative humidity, non-condensing
Shock Specifications Designed to withstand 1.5m(5' ) drops
Ambient Light Immunity: 100,000 Lux
Decode Ranges
Code 39 (5 mil) 30mm - 90mm
100%upca (13 mil) 20mm - 280mm
Code 39 (17.8 mil) 20mm - 230mm
1D Minimal resolution 4mil
Performance may be impacted by bar code quality and environmental conditions
