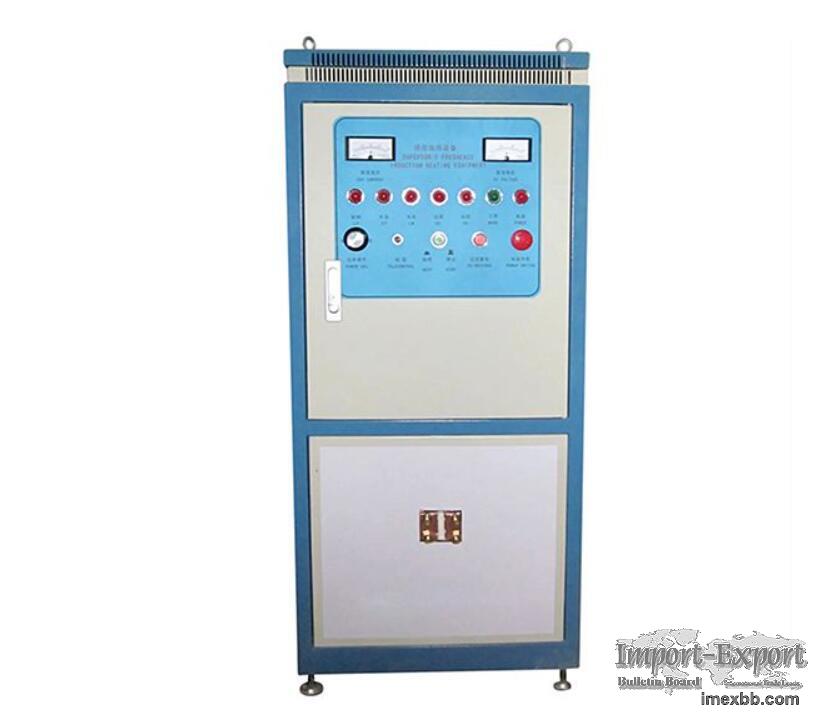

Super-Audio High Frequency Solid State Induction Heating Quenching Machine

Model No.: ZG-SF16, ZG-SF30, ZG-SF40, ZG-SF50, ZG-SF60, ZG-SF80, ZG-SF120, ZG-
SF160, ZG-SF250, ZG-SF320
Rated Power: 16kw, 30kw, 40kw, 50kw, 60kw, 80kw, 120kw, 160kw, 250kw, 320kw
Main Function: Diathermy forging heating, hot upsetting and hot rolling heating
for various metal parts less than diameter 800mm.
Main Advantage: Oscillation Frequency low to 6-50Khz, with transformer no
output high voltage, can heat bigger diameter metal parts than high frequency
induction heating machine.
Main Components: Solid State Induction Heating Controller + Transformer + coil
Super-Audio High Frequency Solid State Induction Heating Quenching Machine
APPLICATION
1. High frequency heating for hot upsetting of various high-strength bolts and
nuts;
2. High frequency quenching of various gears, sprockets and shafts;
3. High frequency quenching of various axle shafts, leaf springs, shift forks,
valves, rocker arms, ball studs and other auto parts.
4. High frequency quenching of various internal combustion engine parts and
deceleration surface parts.
5. High frequency hardening of various pliers, scissors, axes, hammers and
other hand tools.
6. High frequency hardening for all kinds of picks, drill bits, drill pipes,
coal drill bits, air drill bits and other mines.
7. High frequency surface hardening for all kinds of bars, rods, sticks.
8. Diathermy forging heating of bars with a diameter of less than 800mm.
9. Hot upsetting and hot rolling of mechanical spare parts, hardware tools and
straight shank twist drills.
Super Audio Frequency Induction Heater MAIN FEATURES
1. Adopt Siemens IGBT module as power driving part and unique inverter
technology from Germany.
2. 100% load rate, can be working 24-hour per day even in maximum power working
mode.
3. Automatic control type: heating time, heating power, holding time, holding
power and cooling time can be adjusted.
4. Simple operation steps for any new worker can be learned in several minutes.
5. Simple installation, just connecting the 380V three-phase power supply,
water inlet and outlet, and it can be completed in a few minutes.
6. It occupies a very small area, the operation is simple, and it can be
learned in a few minutes.
7. Especially safe, the output voltage is lower than 36V, avoiding the danger
of high voltage electric shock.
8. Heating efficiency is as high as 90% or more, saving energy.
9. Complete automatic protection functions such as over-current, over-voltage,
over-temperature, water shortage, and lack of water, and is equipped with a
fault self-diagnosis alarm system.
