SUNSHINE DT-20N Touch Digital Multimeter AC DC Tester Meter

SUNSHINE DT-20N multimeter with smart touch screen, 10A AC DC voltage and
current resistance measuremen, Sunshine fully automatic high precision DT-
20N multimeter with ohm volt amp and diode voltage tester meter, dual fused
for anti-burn.

SUNSHINE DT-20N Smart Touch Digital Multimeter AC DC Test Meter

Product Features :
Full touch screen control, opening multimeter touch era
Mini body, take with you where you go.
Easy operation, easy to learn and understand
Configure special tip test pen, can test precision components
We are professional repair tool supplier, all our items are high quality, we
will inspect again before packing.

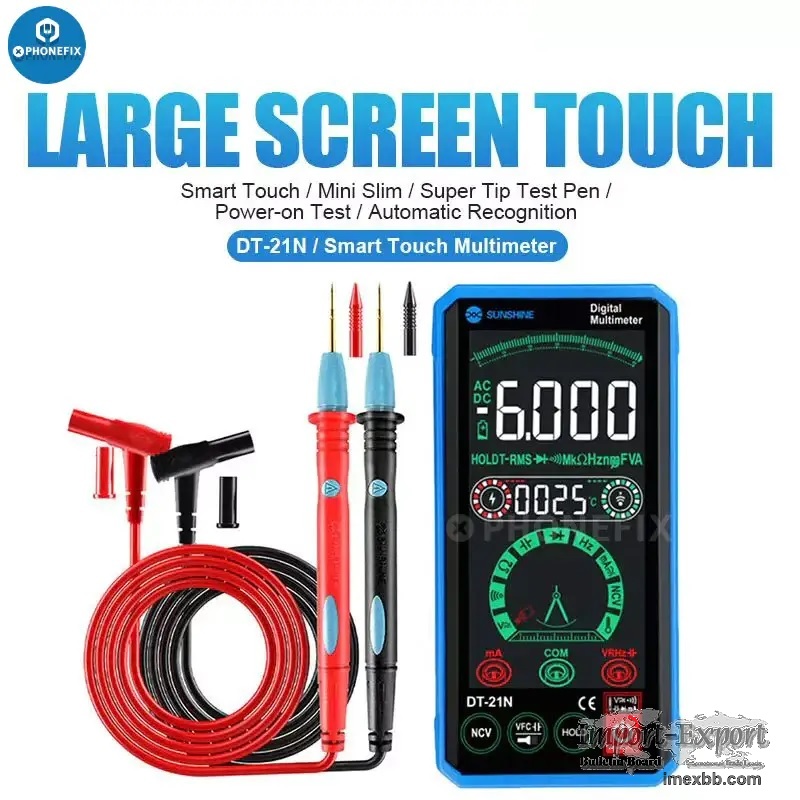

Precision touch three display on one screen : Touch sensitive and stable,
fast measurement, easy to use high-definition 3.2inch large screen three-
display + backlight.
Easy Carry : Ultra-thin design is small and light, more convenient to carry,
humanized design, comfortable grip, easy to put in pants pocket.
Intelligent integration burn-proof design : Three high-speed chips in this
machine make the measurement more accurate.

Product Description :
LED flashing lifgting : Flashing function, touch to open.
Integrated test lead line : The test lead line and the meter are integrated
to prevent the test lead from being lost and effectively prevented from
being inserted into the wrong test lead hole.
Battery compartment : Easy battery replacement, environmental protection and
durability, 2pcs 1.5V AAA Battery.
Non-contact electric field measurement : Check the electric field signal
strength. The stronger the model, the fuller the "----" sign of the signal.
If there is no signal, the display will shoe "EF".
Analog bar display : Dual analog bar on the same screen.
Resistance measurement : Maximum 60MΩ range, fast measurement.
Capacitance Test : Automatic identification of capacitance, fast
measurement.
AC Voltage / Frequency : The same screen display, large screen intuitive.
Line continuity test : When the resistance of the tested line is ＞50Ω，
the default is continuity test.
Firewire Discrimination : Single touch test / firewire recognition. If it is
firewire, the screen will display "OL" buzzer will sound an alarm.
True effective value : Most current waveforms are not sine waves. The power
supply is distorted in different situations. Therefore, it is very important
to measure the AC current and voltage accurately.
Real-time temperature : After booting, the amboent temperature is
automatically displayed, and the measured ambient temperature is displayed
in real time.

Product Specification :
Brand: Sunshine
Product Name: Toush Multimeter
Model: DT-20N
Net Weight: 147g (without battery)
Gross Weight: Approx. 380g
Product Size: 135*68*17mm
Package Size: 185*130*35mm
Battery: 2pcs * AAA battery

Packing List :
1 * DT-20N Multimeter
1 * Test Leads
1 * Black Bag
1 * User Manual

Minimum Order: 1 pieces
