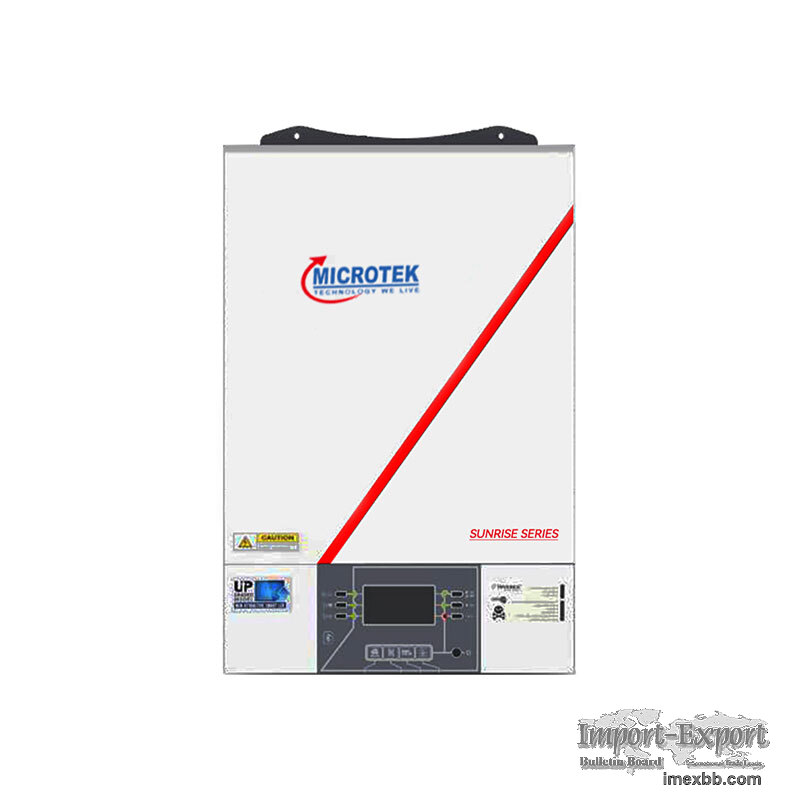

SUNRISE 4.2/6.2KW Off Grid Inverter

SUNRISE series of off-grid photovoltaic inverters with WIFI control function
can work with or without batteries; the LCD screen can be disassembled for easy
replacement.

Features of SUNRISE 4.2/6.2KW Off Grid Solar Inverter
WIFI Monitor.

Communication:RS232, USB, RS485, WIFI.

Touch Button and LCD.

Work with or without battery.

USB On-the-go Function.

Communication port for BMS.

120A Solar Charger+AC Charging current.

PV input.

Specifications Of SUNRISE 4.2-6.2KW Off Grid Inverter
MODEL SUNRISE 4.2KW SUNRISE 6.2KW
Rated Power 4.2KW 6.2KW
INPUT
Voltage 230VAC
Selectable Voltage Range 170-280VAC(For Personal Computers); 90-
280VAC(For Home Appliances)
Frequency Range 50Hz/60Hz(Auto sensing)
OUTPUT
AC Voltage Regulation(Batt. Mode) 230VAC±5%
Surge Power 8400VA 12400VA
Power Factor 1
Effciency(Peak) ＞ 93%
Transfer Time 15ms(For Personal Computers); 20ms(For Home Appliances)
Waveform Pure sine wave
BATTERY
Battery Voltage 24VDC 48VDC
Floating Charge Voltage 31.5VDC 61VDC
Max DC input 33VDC 63VDC
MPPT SOLAR CHARGER&AC CHARGER
Maximum PV Array Power 5000W 6000W
MPPT Range 60~450VDC
Maximum PV Input 500VDC
Max PV Input Current 27A
Maxmum Solar Charge Current 120A
Maxmum AC Charge Current 100A
Maxmum Charge Current 120A
Maxmum Effciency 98%
PHYSICAL
Products Dimension,D x W x H (mm) 356x471x149mm 356x471x149mm
Packing Size, D x W x H (mm) 535x425x224mm 535x425x224mm
Net Weight(kgs) N.W.:13 G.W.:14kgs N.W.:13 G.W.:14kgs
OPERATING ENVIRONMENT
Humidity 5%to 95% Relative Humidity(Non-condensing)
Operating Temperature 0°C to 50°C
Communication Interface USB/RS232/RS485(BMS) /Local WiFi/Dry-contact

Benefits Of Solar Inverter SUNRISE 4.2-6.2KW
Wifi monitoring, real-time monitoring.

Support a variety of communication methods: RS232, USB, RS485, WIFI.

Touch LCD screen for easy operation and friendly interface.

BMS port connection battery management.

Two charging modes, 120A Solar Charger+AC Charging current.

How To Use Ｍicrotek Solar Inverter SUNRISE 4.2-6.2KW?
SUNRISE 4.2-6.2KW off-grid photovoltaic power generation system consists of
photovoltaic arrays, battery packs, photovoltaic controllers, photovoltaic
inverters, AC/DC loads, etc. The basic structure is shown in the figure.

During the day, the photovoltaic array converts solar energy into electric
energy, and under the control of the photovoltaic controller, provides electric
energy for the AC and DC loads and charges the battery; at night, the
electricity stored in the battery supplies power to the AC/DC loads through the
photovoltaic controller.

Solar Inverter SUNRISE 4.2-6.2KW FAQs

Is SUNRISE 4.2/6.2KW easy to install?

Very simple wall-mounted installation, but involving the entire photovoltaic
system is recommended to be installed by professionals.

How about the stability of SUNRISE 4.2/6.2KW?

SUNRISE 4.2/6.2KW is pure sine wave output, the performance is very stable.

If you have needs to buy microtek company inverter, please contact us.

Minimum Order: 100 pieces
