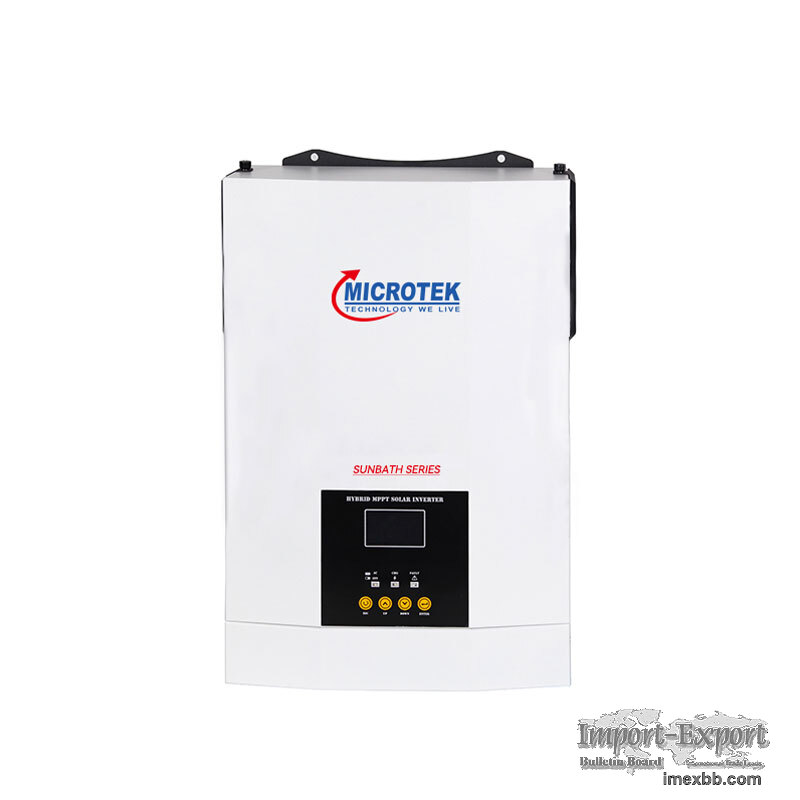

SUNBATH 3.5/5.5KW Off Grid Inverter

SUNBATH series is Microtek's hot-selling model, with mature product technology,
built-in MPPT controller up to 100A, can maximize solar energy, and can choose
WIFI control function.

Features of SUNBATH 3.5/5.5KW Off Grid Solar Inverter

With High PV Input Voltage Range(120-500VDC).

With WIFI Function Optional.

With Touch Button on the LCD Display.

Efficently work with or without battery.

With 100A MPPT Solar Charge Controller Built-in.

Specifications Of SUNBATH 3.5/5.5KW Off Grid Inverter
MODEL SUNBATH 3.5KW SUNBATH 5.5KW
The rated power 3500VA/3500W 5500VA/5500W
INPUT
Voltage 230VAC
Selectable Voltage Range 170-280VAC(UPS); 90-280VAC(Appliances)
Frequency Range 50Hz/60Hz(Auto sensing)
OUTPUT
AC Voltage Regulation(Batt. Mode) 230VAC±5%
Surge Power 7000VA 11000VA
Effciency(Peak) ＞90%
Transfer Time 10ms(UPS); 20ms(Appliances)
Wave form Pure sine wave
No Load Current 1.0A 1.1A
BATTERY
Battery voltage 24VDC 48VDC
Low battery alarming voltage 22.0VDC 44.0VDC
Low battery cut off protection voltage 21VDC 42VDC
Low battery recovery voltage 23.0VDC 46.0VDC
Floating Charge Voltage 27VDC 54VDC
Overcharge Protection 32VDC 64VDC
MPPT SOLAR CHARGER&AC CHARGER
Maximum PV Array Power 5000W 6000W
MPPT Range at Operation Vol. 120~450VDC
Maximum PV Array Open Circuit Vol. 500VDC
Number of MPPT trackers/Max output current 100A
Maximum AC Charge Current 60A
Max mum Charge Current 100A
Max mum Efficiency 0.98
BEST PANEL CONFIGU TATION
Best Panel configuration 300Wp*9pcs*36V(2700Wp) * 2 Parallel
330Wp*9pcs*36V(2970Wp) * 2 Parallel
PHYSICAL
Products Dimension,DxWxH(mm) 481mm*313mm*117mm 481mm*313mm*117mm
Packing size,DxWxH(mm) 543mm*394mm*204mm 543mm*394mm*204mm
Net Weight(kgs) 9.8KG 10.5KG
G.W.kg 11KG 11.7KG
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operation Temperature 0℃-50℃
Benefits Of Solar Inverter SUNBATH 3.5/5.5KW
WiFi function available.

Touch buttons on LCD display.

Works efficiently with or without battery.

Built in 100A MPPT Solar Charge Controller.

High PV input voltage range (120-500VDC).

How To Use Microtek Best Inverter SUNBATH 3.5/5.5KW?
The working principle of SUNBATH 3.5/5.5KW off-grid solar inverter is that the
direct current generated by the solar power panel is converted into alternating
current through the external charge and discharge controller.

Invert the DC power of the battery into a stable AC power for the load to use.
The built-in MPPT enables the PV array to always output maximum power.

Solar Inverter SUNBATH 3.5/5.5KW FAQs

Is SUNBATH 3.5/5.5KW high failure rate?

SUNBATH 3.5/5.5KW warranty for 1 year, can be used for about 5 years, with CE
certificate.


Is SUNBATH 3.5/5.5KW with pure sine wave?

Yes, SUNBATH 3.5/5.5KW is Pure sine wave output.

Minimum Order: 100 pieces
