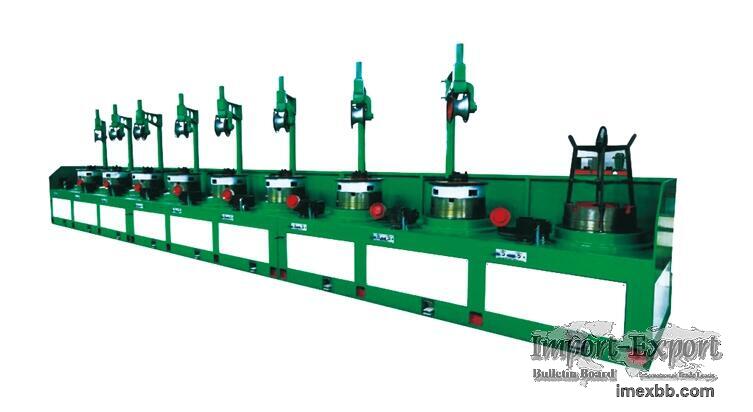

Straight Line Wire Drawing Machine LZ9/1200+Spool Take-up Machine GS 1250

Straight Line Wire Drawing Machine LZ9/1200+Spool Take-up Machine GS 1250
The Straight Line Wire Drawing Machine LZ9/1200+Spool Take-up Machine GS 1250
is a comprehensive solution for wire drawing and winding operations. The
LZ9/1200 machine efficiently reduces wire diameter, while the GS 1250 spool
take-up machine ensures proper winding and packaging. This combination offers
high productivity and precise control, suitable for industries such as steel,
automotive, and electrical, where quality wire production is crucial.

Specifications of Straight Line Wire Drawing Machine LZ9/1200+Spool Take-up
Machine GS 1250
Item Unit LZ9/1200-1000 LZ9/1000-800 LZ10/800 LZ10/600(560)
LZ10/450(400)
Diameter of capstan mm 1200-1000 1100-800 800(700)
600(560) 450(400)
Drawing times time 9 9 10 10 10
Maximum diameter of inlet wire mm φ14-φ10 φ10-φ8 φ9-
φ6.5 φ6.5-φ5.5 φ4.5-φ2.5
Minmum diameter of oulet wire mm φ5-φ3.5 φ3.5-φ2.8 φ2.8-
φ2.0 φ2.0-φ1.7 φ1.4-φ0.8
Drawing line speed m/min 300 360 480 720 840
Inlet tensile strength Mpa ≤1300 ≤1300 ≤1300 ≤1300 ≤1300
Total compression rate % 87.24 87.75 90.53 90.53 90.32
Average compression rate % 20.45 20.8 21 21 20.83
Motor power Kw 110-75 90-45 75-37 37-22 15-7.5

Characteristics of Straight Line Wire Drawing Machine LZ9/1200 And Spool Take-
up Machine GS 1250
The Straight Line Wire Drawing Machine LZ9/1200 and the Spool Take-up Machine
GS 1250 are essential components of wire manufacturing processes. Here are
three characteristics that differentiate these two machines:

Straight Line Wire Drawing Machine LZ9/1200:
1. Drawing Process: LZ9/1200 is primarily designed for the wire drawing
process, where it reduces the diameter of wire by pulling it through a series
of drawing dies. It's focused on the wire reduction and precision aspect of
wire manufacturing.

2. High Drawing Speed: This machine is capable of high drawing speeds, making
it suitable for producing large quantities of wire quickly. It's often used in
applications where wire needs to be rapidly processed.

3. Precision and Surface Finish: LZ9/1200 is known for its ability to provide
precise wire diameter control and a smooth surface finish. This is crucial in
industries that require wires with specific tolerances and high-quality surface
finishes.

Spool Take-up Machine GS 1250:
1. Take-up and Packaging: GS 1250 is a spool take-up machine, specialized in
winding the drawn wire onto spools or drums. Its primary function is to
efficiently package the wire for storage, transportation, or further
processing.

2. Variable Spool Sizes: This machine is adaptable to various spool sizes,
allowing manufacturers to package wire onto different-sized spools based on
their requirements. It offers flexibility in wire packaging.

3. Tension Control: GS 1250 is equipped with tension control mechanisms to
ensure that the wire is wound onto the spool with the appropriate tension. This
is crucial for preventing wire tangling and maintaining spool integrity.

As a straight line wire drawing machine manufacturer, we can offer sorts of
related products for sale, if you have needs, please contact us.

Minimum Order: 1 sets
