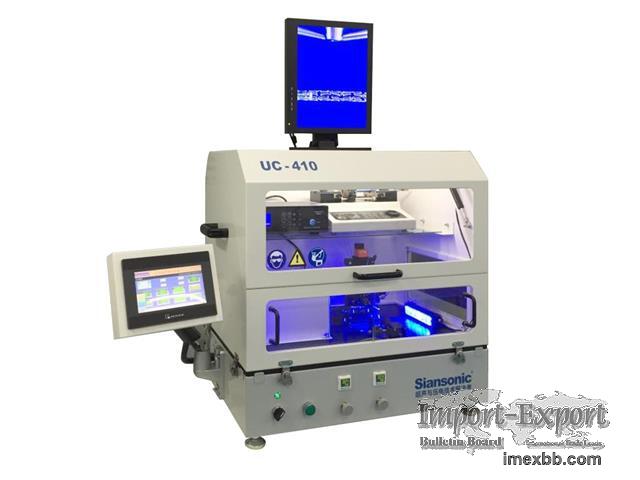

Stent Ultrasonic Coating System

Stent ultrasonic coating system specially for drug eluted stent coating

Stent spray coating system with precisely control of deposition by
ultrasonic nozzle technology

Without adhesion, pinholes and other defects on coating layer

Stent coating machine with excellent uniformity, stability and consistency

Stent spray coating system suitable for coronary artery, intracranial and
sinus stents

High corrosion resistance, compatible with various organic solvents

Stent coating system is an ultrasonic spray coating system specially used
for deposition of drug layers on stents. The stent spray coating system is
equipped with Siansonic NanoMist ultrasonic nozzle or FocusMist ultrasonic
nozzle to deposit drug coating onto the stent surface through ultrasonic
atomization technology. It can precisely control the dosage of the coating,
and the coating is uniform without adhesion, pinholes, orange peel and other
defects. It can be used for depositing drug coating on coronary stents,
peripheral stents, sinus stents, intracranial stents and other stents.

Siansonic NanoMist ultrasonic nozzle, which is mainly used for stent drug
coating system, has smaller spray width and lower flow rate than other
nozzle models. With regard to drug coating for coronary stents, intracranial
stents, peripheral stents and other stents, drugs such as rapamycin which is
usually dissolved in organic solvents to prepare a drug solution. The drug
solution is atomized by ultrasonic nozzle into soft mist and it is uniformly
sprayed onto the stent surface to form drug layer. The drug coating on the
surface of the stent prepared by ultrasonic coating is uniform and dense,
without defects such as adhesion, pinholes and bubbles. Siansonic stent drug
coating system is equipped with a variety of stent holders, which can be
used for rapid loading and unloading of stents. The stent drug coating
system is also equipped with a drying device, which can dry the drug coating
during the coating process to accelerate the coating process.

Furthermore, the specific stent ultrasonic coating laboratory in our site
provide the process testing services for customers at any time, which can
help customers to improve and establish process criteria. Our engineers and
technicians in laboratory have plentiful experience in coating different
types of stents.

Features of Siansonic ultrasonic stent coating system:

Stent drug coating system for drug eluted stents: integrated ultrasonic
nozzle, ultrasonic generator, liquid delivery pump, stent holder, motion
system, etc.

High uniform coating layer: drug coating without adhesion, pinholes, orange
peel and other defects

Siansonic NanoMist or FocusMist ultrasonic nozzle: capable of extremely low
flow rate, and the spray width is 1mm-10mm, suitable for various of stents

Precisely control of the dosage of drug coating on the stent

Applicable stent dimension: typically diameter < 12mm, length < 100mm

The transfer efficiency of material is 4-5 times higher than that of air
spray coating

Unique stent holder design: fast loading and unloading stent

Wide range flow rate: 0.005ml/min - 2ml/min (depending on the solution and
nozzle model)

Full digital ultrasonic controller: multi-core high-speed DSPs, multi
closed-loop control, control accuracy of ultrasonic power is 0.01W.

Self-cleaning ultrasonic nozzle to prevent nozzle clogging

Extra air dryer can assist the drying of stent coating

The stent spray coating system is suitable for various typical solvents and
polymers, such as acetone, tetrahydrofuran (THF), DMAC, chloroform, toluene,
etc; Polymer: polyurethane, polycarbonate, silicone, styrene, etc

Exhaust system interface: built-in exhaust fan and ready for connecting to
the exhaust system of the laboratory or clean room

Full color touch screen and friendly user interface

Minimum Order: 1 sets
