Steel Cord Conveyor Belt Wire rope core conveyor belt

Steel Cord Conveyor Belt Wire rope core conveyor belt conveyor belt
manufacturers in china rubber belting for sale

acid and alkali resistant conveyor belt DESCRIPTION
Belt type ST630 ST800 ST1000 ST1250 ST1600 ST2000 ST2500 ST2800
ST3150 ST3500 ST4000 ST4500 ST5000 ST5400
Min. tensile strength (N/mm) 630 800 1000 1250 1600 2000
2500 2800 3150 3500 4000 4500 5000 5400
Max. diameter of steel cord (mm) 3.0 3.5 4.0 4.5 5.0
6.0 7.2 7.2 8.1 8.6 8.9 9.7 10.9 11.3
Steel cord pitch (mm) 10.0±1.5 10.0±1.5 12.0±1.5
12.0±1.5 12.0±1.5 12.0±1.5 15.0±1.5 13.5±1.5
15.0±1.5 15.0±1.5 15.0±1.5 16.0±1.5 17.0±1.5
17.0±1.5
Top/Bottom cover thickness (mm) 4.0 4.0 4.0 4.0 4.0 4.0
5.0 5.0 5.5 6.0 6.5 7.0 7.5 8.0

Belt width Number of steel cord
St630 St800 St1000 St1250 St1600 St2000 St2500 St3150 St3500
St4000 St4500 St5000 St5400
800 75 75 63 63 63 63 50 50 50
1000 95 95 79 79 79 79 64 64 64
64 59 55 55
1200 113 113 94 94 94 94 76 76 77
77 71 66 66
1400 133 133 111 111 111 111 89 99 90
90 84 78 78
1600 151 171 126 126 126 101 101 101 104
104 96 90 90
1800 143 143 143 143 114 114 117
117 109 102 102
2000 159 159 159 159 128 128 130
130 120 113 113
2200 176 141 141 144
144 134 125 125
2400 193 155 155 157
157 146 137 137
2600 209 168 168 170
170 159 149 149
2800
171 161 161
Note: not applicable (not available) due to availability.

Wire Rope Core Conveyor Belt Features: high tensile strength, good impact
resistance, long life, small use elongation, good groove, good flexure
resistance. Suitable for long distance, large volume and high-speed
transportation of materials. The product is composed of core glue, wire rope,
covering layer and edge glue.
Application: widely used in coal, mine, port, metallurgy, electric power,
chemical industry and other fields to transport materials.
Varieties: according to the performance of the covering rubber can be divided
into: ordinary type, flame retardant type, heat resistant type, wear-resistant
type, cold-resistant type, acid and alkali resistant type, oil-resistant type
and other varieties
Wire rope core conveyor belt to implement standards and main indicators

Varieties Standards and key indicators
Ordinary type GB/T9770-2001
Fire resistance type MT668-1997
General fire resistance type MT668-1997
Heat resistant type HG2297-92
Wear resistant type Shao boer Wear loss≦900mm³
Acid, alkali and oil resistant HG4-846
Hardy type brittleness temperature -40°C

Level code Tensile strength,Mpa≧ elongation at break %≧ Wear loss,
mm³≦
D 18 400 90
H 25 450 120
L 20 400 150
P 14 350 200
Note:
D-Under strong wear working conditions;
H-Strong split under working conditions;
L-Under general working conditions;
P-Oil -, acid - and alkali - resistant, cold - resistant and generally
inflammable conveyor belt

Baoxiang provides rubber belting for sale, we are committed to the alkaline
resistant conveyor belt, material handling conveyor belt series, rich
experience, welcome to consult.

https://www.baoxiangbelt.com/produ , ct-steel-cord-conveyor-belt.html

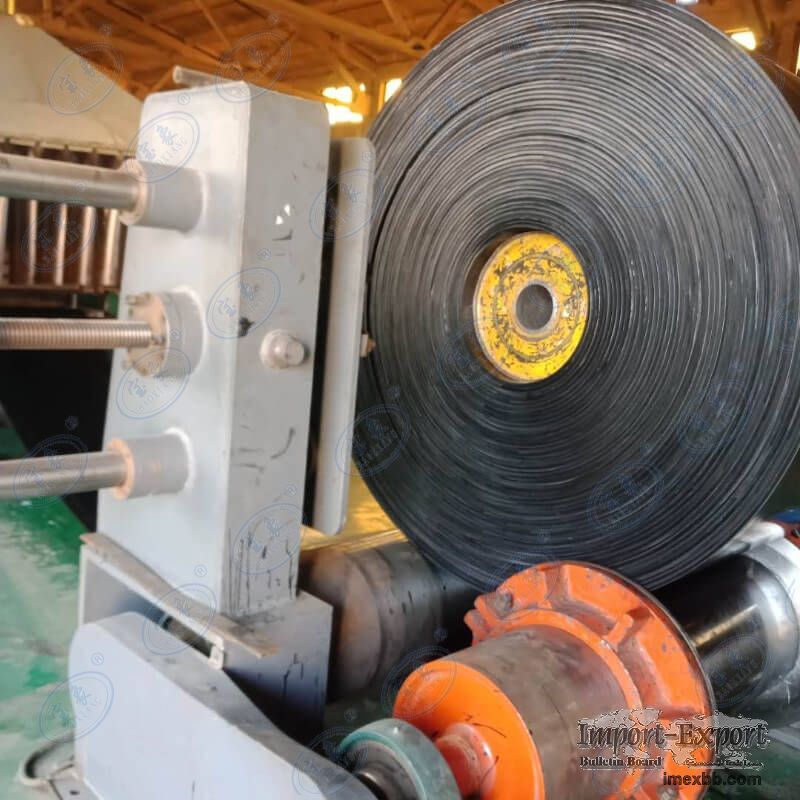

Steel Cord Conveyor Belt   Wire rope core conveyor belt
