Standard TFT LCD Module

TFT LCD is an abbreviation of thin film transistor LCD, Zhunyi Technology china
tft lcd module covered 0.96 inches to 15.6 inches. Screen resolution from
80*160 to 1920*1200. china tft module included round, bar, square, 4: 3, 16:
9, and other shapes. Optional interfaces are SPI, RGB, MCU, MIPI, LVDS, and
EDP.

TFT-LCD has the advantages of delicate and vivid images, lightweight, low power
consumption, and good environmental protection performance. china tft lcd
screen is widely used in different fields, like cellphone, laptop, computer,
smart watch, smart home appliance, POSs, industrial handheld device, HMI,
robot, vending, medical instrument, vehicle, electric bike, QRcode scanner, an
educational device, advertising display, audio device and so on.

Types of Standard china tft lcd panel

IPS TFT LCD Display
Size: 0.96" to 15.6"

Resolution: 80*160 to 1920*1200

Shape: 4:3, 16:9, round, square, bar

Interface: SPI, RGB, MCU, MIPI, LVDS, EDP

View direction: Full (IPS)

Touch screen: Support

Customization: Support

TN TFT LCD Display
Size: 2.4" to 15.6"

Resolution: 240*320 to 1024*768

Shape: Vertical, horizontal

Interface: SPI, RGB, MCU, MIPI, LVDS, EDP

View direction: 12 o'clock

Touch screen: Support

Customization: Support

What is The Difference Between IPS and TN LCD Display?
TN and IPS are two technologies used to make liquid crystal displays.

TN stands for Twisted Nematic and IPS stands for In-Plane Switching.

1
IPS displays cost considerably more compared to TN displays.

2

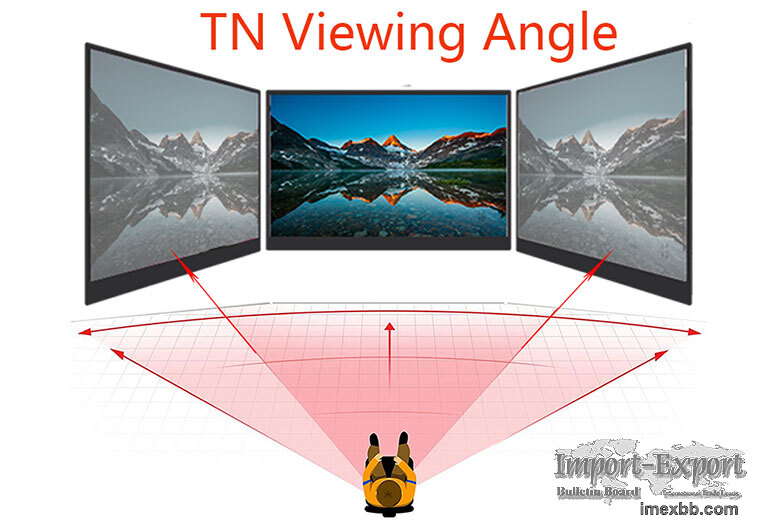

IPS displays have much wider viewing angles compared to TN displays.

3
IPS monitors work by having a parallel instead of perpendicular array of
pixels, while TN panels can often discolor if viewed from any relatively
extreme angle.

4
IPS devices has a slower response time and refresh rates.

Application of Standard TFT LCD Module
china tft lcd display are widely used in various fields, such as vehicles,
handheld devices, ATM/POS.

QRcode scanners, 3D Printers, VR glasses, medical devices, instruments, smart
homes, industrial equipment, home appliance, advertising machine, face
recognition, electrical brochure, and other fields.

As a professional display module manufacturer, Zhunyi has high-quality tft
display for sale. Welcome to contact us if needed.

Minimum Order: 1 pieces
