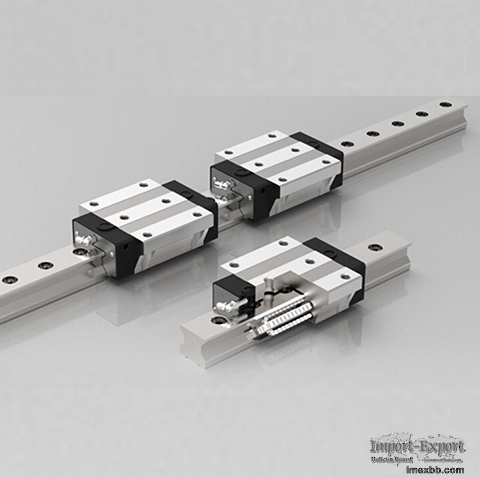

Standard Linear Actuator Motion Roller Bearing Guides-LMR Series

Category： Linear Roller Guideway

The LMR series bearing roller guide adopts a cylindrical roller-type rolling
element to replace the traditional steel ball rolling element. The change from
point contact to line contact significantly enhances its load-carrying
capacity. When bearing high loads, the cylindrical roller rolling element
exhibits minimal elastic deformation. The four rows of cylindrical rollers
utilize a 45° contact angle DB design, resulting in high rigidity and load-
bearing capabilities.

Additionally, linear roller guide bearings can withstand equal loads in radial,
reverse radial, and lateral directions. Moreover, it incorporates a specially
designed cylindrical roller synchronizer that eliminates the gear effect caused
by mutual friction during rolling. This greatly reduces walking resistance,
enhances smooth operation, and effectively reduces noise levels. After years of
verification, the China linear roller guideways plant produces the preloading
setting and achieves a perfect balance between walking resistance, rigidity,
and service life. The linear drawer guide roller assembly fully meets the high
precision, high load-carrying capacity, high reliability, low noise, and smooth
and stable linear motion requirements of high-end precision equipment Designed
for linear guide consumers.

Click on linear motion manufacturer to learn more.

Wholesale
-Ultra-high rigidity, super-heavy load-carrying capacity

-Interchangeable linear roller-bearing slider

-DB design for equal loads in four directions

-Comprehensive lubrication design

-Highly precise selectable grades: H, P, SP, UP

-Fully sealed and available in various configurations

-Smooth walking performance

-Dust-proof steel belt design for the linear roller bearing slide rail

-High-speed, low-noise operation

-Linear roller bearing manufacturers follow international standards to produce,
including dimensions and performance parameters

Applications of Roller Bearing Guide Rails-LMR Series
- Machine tools that require standard linear bearing with rollers(machining
centers, large gantry, precision lathes, etc.)

- Industrial automation (heavy-duty gantry robots, cantilever Cartesian robots,
robot tracks)

Drawing of Standard Linear Track Roller Systems-LMR Series.

If you want to know more kinds of linear roller rail systems , please visit our
website.

CSK linear motion manufacturer start to manufacture linear motion products in
2010.Our company has passed ISO14001 Certification,and we are able to mass
produce precision linear motion guideway with a walking accuracy of less than
0.003mm. Our vision is to become a sustainable enterprise by establishing key
core technologies, and to create an international brand status of Chinese
linear motion control systems.
