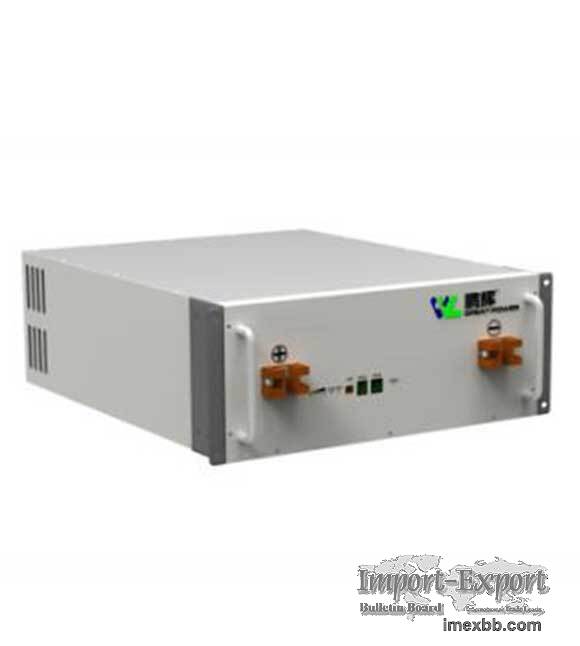

STANDARD BATTERY MODULES FOR BASE STATION

STANDARD BATTERY MODULES FOR BASE STATION
A standard battery module for the base station includes a plurality of unit
cells; A first barrier located between adjacent ones of the unit cells; A
second barrier located between adjacent ones of the unit cells and spaced from
the first barrier; and spacers located between the first barrier and the second
barrier.
PARAMETERS OF STANDARD BATTERY MODULES FOR BASE STATION

No. Item SPEC.
48100
1 Capacity/kWh 4.8kWh
2 Rated Voltage/V 48
3 Material LFP
4 Standard Discharge Current/A 0.2C
5 Max. Continuous Discharge Current 1C
6 Standard Charge Current 0.2C
7 Max. Continuous Charge Current 1C
8 Cycle Life ≥1500
9 Communication Mode RS232，RS485
10 Operating Temperature Range Charge 0-45℃
Discharge -20-60℃
11 Applicable Standard UL，IEC62619，UN38.3


No. Item SPEC.
1 Module Specifications 12S2P (0.5C） 8S3P (0.3C）
2 Rack Series And Parallel 180S2P (15 modules+1 high-pressure
box） 184S3P (23 modules+1 high-pressure box）
3 System Series And Parallel 180S12P (6 racks parallel） 184S12P
(4 racks parallel）
4 Rated Capacity 300Ah/1800Ah 450Ah/1800Ah
5 Rated Voltage DC576V DC588.8V
4 Working Voltage Range 450V～657V 460V～671.6V
5 Operating Voltage Range 522V～639V 533.6V～653.2V
6 Rack Rated Energy 172.8KWh 264.96KWh
7 System Rated Energy 1036.8KWh 1059KWh


RECHARGEABLE ENERGY STORAGE SYSTEM COMPETITIVE EDGES
Small size, high voltage, and big capacity--better traditional lead-acid
battery replacement choice.
Standard server size that can be built-in 19-inch rack--save room.
Wide operating temperature range.
Long service life.
Independent development and production of single cells--make sure consistency
performance of cells.

As a lithium battery factory china, we have types of lithium batteries for
sale, anything you need, please contact us.

Minimum Order: 1 sets
