Stainless Steel Impulse Water Turbine / Pelton Water Turbine For High Water

Impulse Water Turbine / Pelton Hydro Turbine / Pelton Water Turbine for high
water head renewable energy



Descrition:



The Pelton turbine is widely used in hydropower station with the heads from 80-
1000m.

Pelton turbine is consisted of runner, turbine case, nozzles assembly, inlet
pipe, deflector etc. The runner is assembled in the shaft of the generator,
torque transmission by ping.

lt utilizes the dynamic power of high pressure water flow to rotate the runner
and force the rotor work, The centre line of the jet is in the same plane as
the runner while rotating.

Pelton turbine has the advantages of compact construction, stable running and
easy operation. Normally, Small pelton turbine always arranged with horizontal
shaft and one or two nozzles, Medium size and larger Pelton turbines are most
often arranged with vertical shaft, and equip four or six nozzles to obtain
more power.



Applications:

1. Water head: 80m -- 1000m

2. Power: 0.5MW --- 20MW

3. Frequency: 50hz / 60hz

4. Generator Output voltage: 400V, 3.3KV, 6.3KV, or 10.5KV AC three phase,



If you are interested in the Pelton turbine, you should send some key
parameters (such as net head, flow discharge, unit number, frequency, voltage)
in inquiry.



We can supply pelton turbine generator above 500KW, supply the runner with
Forge and CNC machine, or runner with cast abrading machine for your require.



Specifications:



Type

Horizontal pelton turbine with one /two nozzles

Vertical pelton turbine with four nozzles

Water head

80m -- 1000m.

Installation capacity

0.5MW -- 20MW

R unner material

Stainless steel (0Cr13Ni4Mo)

Cast machine/Forge + CNC machine

Generator type

AC Synchronous generator

Auxiliary Equipment

Governor, Inlet Valve, unit side panel, excitation system







Competitive Advantage:



HYDROTU is the complete Chinese hydropower equipment supply, consulting and
engineering design venture in the field of hydropower equipment. We provide the
high quality Chinese hydropower equipment with advanced technologies and
integrated services to meet the global hydropower markets.



With our Integrated Services concept, we provide you with customized support
from project planning through implementation to plant commissioning and
service. Our principle: Customer’s project is our project , customer’s
success is our success.



HYDROTU covers the services, complete equipment supply, economic solution of
the global hydropower projects and aims to be the best global supplier of
hydropower equipment as well as the best integrated services provider on the
hydropower markets.



Hydrotu Pelton runner with Forged integrally + Entire CNC machning has already
achieved the ace level in the world since the accumulation of the high head
runner experience in decades.

the pelton runner adopt integrally forged ( ASTM A 473 S41500 material),
guarantee the reliability of the material, then machine shaping by CNC, improve
the pelton buckets precision, and shap wave, thus ensure the turbine hydraulic
performance and safty running.

our factory have advanced test system, all parts have ultrasonic testing,
penetration testing, magnetic testing, radiographic testing, dimension&profile
checking by measuring arm, to guarantee our turbine best quality.

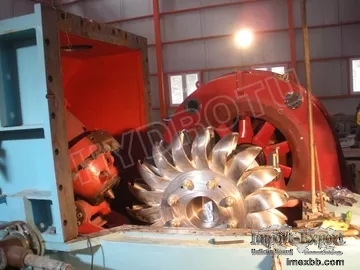

Stainless Steel Impulse Water Turbine / Pelton Water Turbine For High Water
