Stainless Steel 304 / 316 Desalination Plant Drinking Water Treatment System
School Campus Reverse Osmosis Water Filter

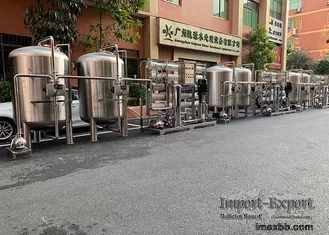

RO Water Purifier Plant Introduction



Reverse Osmosis Water System is raw water through precision filter, granular
activated carbon filters, activated carbon filters, compression, and then
through the pump pressure, the use of reverse osmosis membrane pore size
1/10000μm make a higher concentration of water into low concentration of
water, while the industrial pollutants, heavy metals, bacteria, viruses and
other impurities in the water mixed with a large number of full isolation,
to achieve the required physical and chemical indicators for drinking and
hygiene standards, outputs to clean pure water is the best choice of body
replenish water quality. It is key equipment of pure water plant.




SUS-304 Features :

1--Hygienic /Clean / Smooth / Beauty / Food grade.
2--Welding technology : Single-sided welding double-sided forming,which make
inside pipes elbows are same and smoth.

RO Water Purifier Plant Details



Parameters of 10000LPH RO Water Purifier
Product Name
Material
Brand
Usage
Raw Water Pump
SUS-304
CNP
Provide needed pressure for every pre-treatment filter
Sand Filter
SUS-304
China
Remove the water contains sediment, manganese, rust, colloid material, and
other particles in the above 20UM of substances hazardous to health.
Activated Carbon Filter
SUS-304
China
Remove the pigment in the water, smell,organisms, reducing the residual
value of water and pesticide pollution and other harmful pollutants.
Water Softener (one stand-by)
SUS-304
China
Water softener can remove Calcium ion(Ca2+) and magnesium ion(Mg2+) to reach
the aim of removing hardness from water.
Security Filter
SUS-304
China
Remove fine particles, sand filters can remove very small colloidal
particles in the water, so that the turbidity reached 1 degree.
High Pressure Pump
SUS-304
CNP
Provide needed pressure for RO system
RO Membrane
BW30-400IG
USA,Dupont
Can remove particles, colloids, organic impurities, heavy metal ions,
bacteria, virus, heat source etc. harmful substances and 97% dissolved
salts.
UV Sterilizer /Ozone generator
100W*2
China
Kill bacterial in water. UV for direct drinking water. Ozone generator for
bottle water
