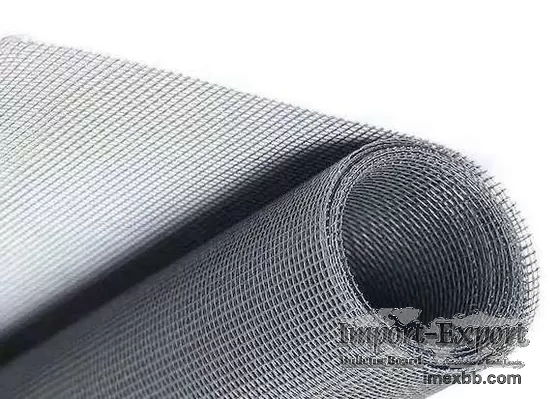

SS 316 50m Dutch Weave Mesh Filter Cloth Alkali Resistant Square Hole

PRODUCT DESCRIPTION
Customizable SS 316 Lenght 50m or as required Dutch Weave Filter Cloth

Filter Cloth Application

It is used for screening and filtration in acid and alkali environment. In
petroleum industry, it is used for mud screen, chemical fiber industry, screen
screen and electroplating. Used in mining, petroleum, chemical, food, medicine,
machinery manufacturing and other industries. It is used for screening and
filtering in acid and alkali environment. It is used for mud screen in petroleum
industry, chemical fiber screen and acid washing screen in electroplating industry.

Filter Cloth Technical Parameters:

Square mesh, Plain weave or Twill weave
Aperture(mm) Wire diameter(mm) Mesh per inch(1inch=25.4mm) Open
area(%) weight
W D MESH FO KG/M2
10.00 2.00 2.0 68 4.23
10.00 1.60 2.2 75 2.80
8.00 1.60 2.5 69 3.39
7.00 1.40 3.0 69 2.90
6.30 1.00 3.5 74 1.74
5.00 1.00 4.25 68 2.12
4.00 1.00 5.0 62 2.54
3.00 1.20 6.0 50 4.40
2.50 1.00 7.25 51 3.65
2.00 1.00 8.5 41 4.10
2.00 0.50 10.0 64 1.25
1.64 0.90 10.0 42 4.00
1.60 0.50 12.0 58 1.51
1.06 1.00 10.0 38 4.88
1.25 0.40 16.0 57 1.23
1.25 0.80 12.0 37 3.92
1.00 0.30 20.0 57 0.99
1.00 0.40 18.0 51 1.45
1.00 0.50 17.0 44 2.12
0.87 0.40 20 48 1.56
0.80 0.50 20 38 2.44
0.70 0.36 24 44 1.54
0.63 0.40 25 37 1.97
0.50 0.30 30 37 1.59
0.40 0.25 40 38 1.22
0.315 0.20 50 37 0.99
0.25 0.16 60 37 0.79
0.20 0.125 80 38 0.61
0.16 0.10 100 38 0.49
0.125 0.080 120 37 0.40
0.10 0.063 150 38 0.31
0.075 0.053 200 36 0.26
0.063 0.04 250 37 0.20
0.042 0.036 325 29 0.22
0.036 0.028 400 32 0.16
0.025 0.025 500 25 0.16

Filter Cloth Service

Our company has a large number of regular specifications of stock, according to
customer requirements for production and processing and customization.

Filter Cloth Company Introduction

Our factory is a chemical factory integrating production, sales, wholesale and
retail. All products are provided with one-stop service. From wire drawing, mesh
weaving, deep processing and inspection, we operate independently. All materials,
sizes and specifications can be customized according to customer requirements. It
is one of the largest manufacturers of stainless steel wire mesh in China. We have
a large stock of many popular standard items.
