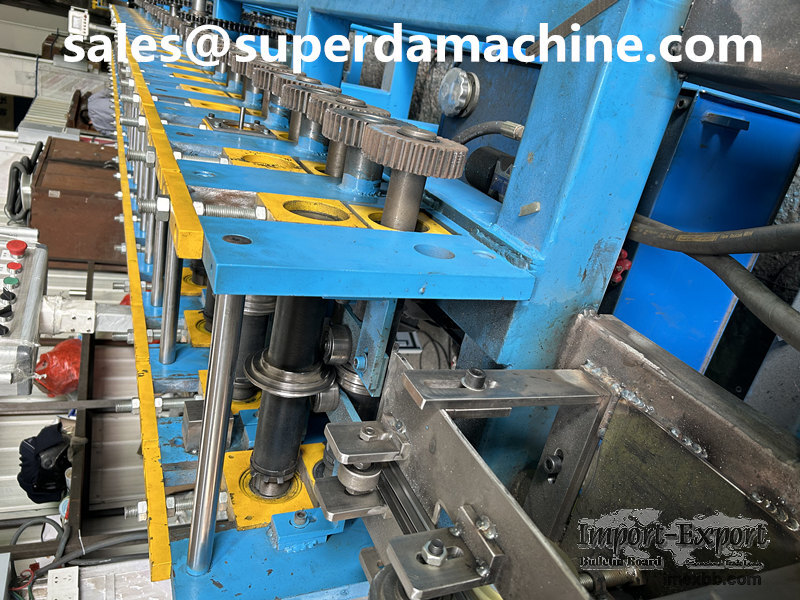

Square Metal Filter Frame Roll Forming Machine

Superda Machine Metal filter holding frame roll forming machine production line
with automatic bending process, save raw material and easy operation.
Square Mesh Holding Frame Machine Process
Uncoiler →Servo feeder→ Guide device → Hydraulic Punch → roll forming
machine →shear device (including knife)→ finished product rack
Filter mesh holding frame forming system data

5.1 Forming Roller：20 stations，and add Rub-roll, To make sure the surface
profile no scratches.

5.2 Side Panel：T.18mm ,A3 steel Heavy duty 。

5.3 Rolling speeding: 5-8 m/min。

5.4 Roller material：#45，overall quenching, hardness HRC56-62 ℃.
5.5 Motor power：11KW。
5.6 Main Roller ：dia.65mm，45 #。
5.7 Equipment base: 45 # H type using welded steel plate.
5.8 Transmission: chain drive.
5.9 Security: across the board with emergency stop buttons, easy to handle
emergencies, to ensure that equipment and operator safety. And other gear in
the chain and the staff could easily lead to injury transmission section
covered with protective cover, to ensure the safety of workers.

Minimum Order: 1 sets
