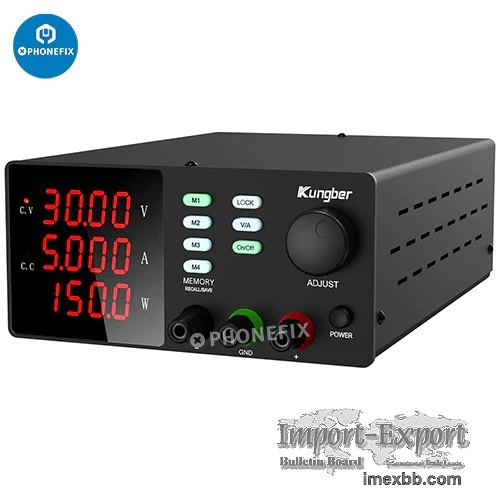

SPPS-S Series Adjustable Switching Regulated DC Power Supply

SPPS-S Series DC power supply variable with memory, 60V 5A adjustable
switching regulated DC bench linear power supply with memory recall and
output disables button 4-Digits display and alligator leads for mobile phone
repair tool.

Features:
Easier to Set Values: Encoder switch is used on DC power supply 2021 version
to replace the potentiometer switch which is widely used but not easy to
adjust. On this version you can just “set” Voltage and Current instead of
“adjust”. Make works accurate, easy and fast.
4 Groups of Internal Memories: You can set 4 groups of commonly used Voltage
and Current combination and easily recall them by press “M1-M4”. Use the
“ADJUST” knob to set new combinations.
Output Switch Control: Sometimes we need to switch between different voltage
or current outputs, but we often forget to unplug the previous instrument
and cause it to burn out, which often occurs in the maintenance. Output
switch is designed to solve this problem. By pressing the On/Off key, the
required voltage and current can be adjusted without the actual output
power, which makes this bench-top DC power supply more secure and more
energy efficient.
Reliability and Safety: Variable power supply uses premium electronic
components, provides reliable working status and prolongs the product's life
effectively. Many safety measures are adopted in power supply- Grounding
wire, Leakage protection, Thermal protection, Voltage overload, Power
overload and Short-circuit protection. When the working temperature is more
than 122℉/50℃, the intelligent thermal protection will activate the
cooling fan to lower the temperature according to the load.
Compact and Various Application: This DC power supply is less than 3 lb and
measures only 9.9 x 3.3 x 6.7 inches, with a high resolution of 00.01V and
0.001A, led 4 digits display. You can easily tune it within 0-60V and 0-5A,
applies for laboratory, school, repair, electrolyzation, electroplate, brush
plating, lamp test, aging testing, battery charge, home DIY and other
requirements.


Note: Products with electrical plugs are designed for use in the US. Outlets
and voltage differ internationally and this product may require an adapter
or converter for use in your destination. Please check compatibility before
purchasing.


SPPS-S Series DC Bench Power Supply
Input Voltage 230V±10% 50Hz/115V±10% 60Hz
Input Voltage: 230V±10% 50Hz/115V±10% 60Hz
Working Temperature: 0 ℃-40℃; Relative Humidity: ＜80%RH
Storage Temperature: -10 ℃-70℃; Relative Humidity: ＜70%RH
Constant Voltage State: Voltage stability≤1%±3mV Load stability≤1%±3mV
Ripple noise≤50mVrms
Constant Current State: Current stability≤1%±3mA Load stability≤1%±3mV
Ripple noise≤50mArms
Display Accuracy: 1%±5digits
Display Resolution: Voltage: 00.01V / Current: 0.001A
Product Dimension: 9.9 x 3.3 x 6.7 inch / 252 x 84 x 170mm
Product Weight: 2.64lb / 1.2kg
Fuse Standard: 5A (AC 110V Input)

Minimum Order: 1 pieces
