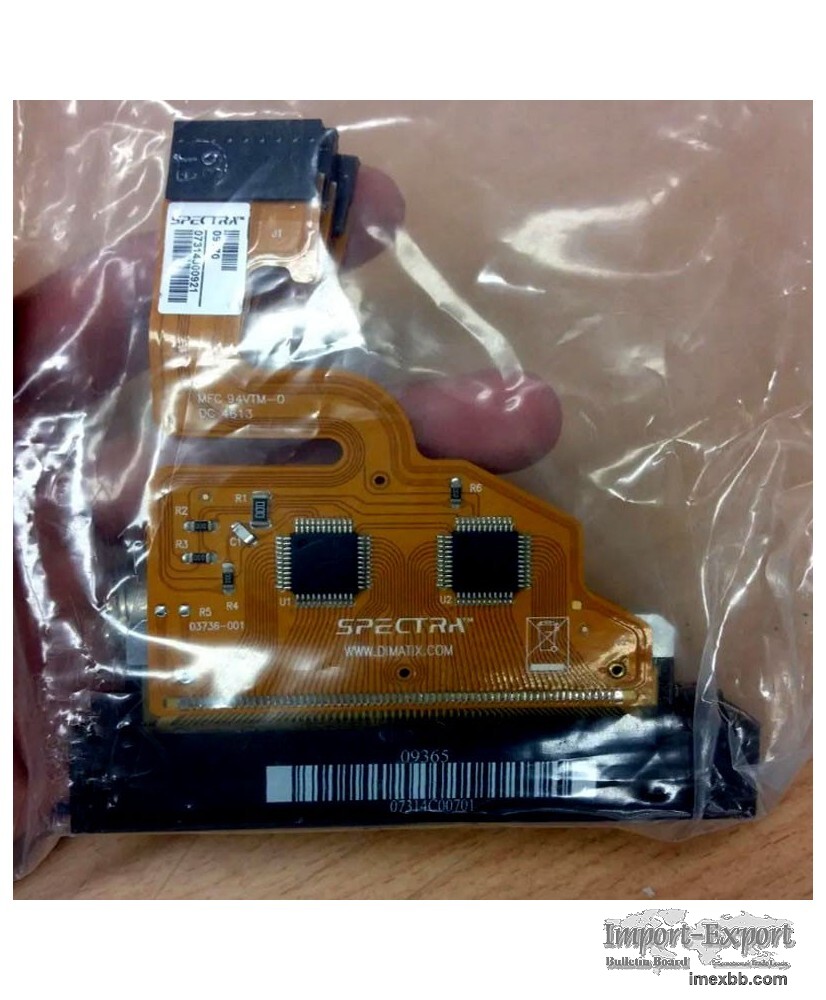

Spectra Galaxy JA 256/80 AAA

The Spectra Galaxy JA 256/80 AAA is a high performance, robust and reliable
jetting assembly designed for a broad range of wide format printers at
resolutions up to 450 dpi. Four electrically independent piezoelectric
slices, each with 64 addressable channels, are combined to provide a total
of 256 nozzles. The nozzles are arranged in a single line, at a native
0.010 inch distance between nozzles.


The fluid interface and electrical connection are at the top of the jetting
assembly and several mounting configurations are possible. This jetting
assembly contains serial-to-parallel converters for selecting which jets to
fire; all jets can be fired simultaneously or individually.

These Spectra heads are manufactured in the US and passed Dimatix Spectra
US quality control tests to ensure the best durability. It carries a
manufacturer product warranty.

NOTE: This print head is used for white ink on Agfa :Anapurna XL2. If you
need the print head for the Agfa :Anapurna XL2 colour channels, please
refer to PPHSPGA50 (Spectra Galaxy JA 256/50 AAA)


Specifications
Technology: Piezo Electric
Max. Resolution: 450 dpi
Cal. Droplet Size: 80 pico litre
Adj. Range for Droplet Size: 75-85 pico litre
Tot. Amount of Nozzles: 256
Nozzle Spacing: 254 microns
Nozzle Diameter: 52 microns
Firing Frequency: 20 kHz
Operating Temperature: up to 90°C
Ink Compatibility: Solvent, water-based and UV Inks

Minimum Order: 1 pieces
