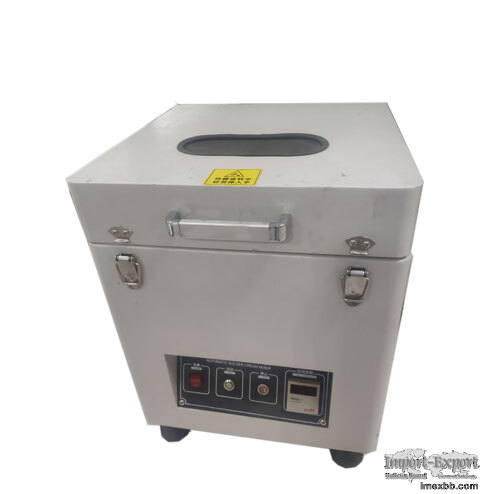

Solder Paste Mixer

Hangzhou TronStol Technology Co., Ltd., smt equipment suppliers, was
established in 2010 (the company name has been updated in 2019). It is a high-
tech enterprise located in Hangzhou. TronStol focuses on pick & place machines
and it also helps to provide machine parts like reflow oven, stencil printer,
and conveyor to satisfy customer's needs of a completed SMT production line. We
are SMT One-Stop manufacturer and provider. It provide pcb assembly machine,
automatic pick and place machine, automatic smt pick and place machine, table
top smt pick and place machine,etc.

The automatic SMT solder paste mixer machine uses the revolution to generate
centrifugal force, and the force generated by the rotation at an angle of 45
degrees with the revolution axis makes the solder paste at the upper end of the
tank continuously move downwards, while the solder paste at the bottom of the
tank moves from the periphery to the top of the tank.

Specification of Solder Paste Mixer

Model Solder paste mixer
Speed Motor speed：1350RPM
One revolution：400RPM；Second rotation：300RPM
Capacity 0-1000 g*2 cans
Can accept solder paste cans DiameterΦ60-Φ67 Standard(Suitable for general
500g solder paste cans)
Time setting 0.01s～99H99s, Minute and the second setting
Display method LED
Peak Power(KW) 60W
Input Voltage(V) AC 220V±10％ 50Hz
Dimension L400*W400*H500mm
Packing size 520*520*580mm
Net weight 45kg
Gross weight 50KG

Features of Solder Paste Mixer

The solder paste mixer uses the revolution to generate centrifugal force, and
the force generated by the rotation at an angle of 45 degrees with the
revolution axis makes the solder paste at the upper end of the tank
continuously move downwards, while the solder paste at the bottom of the tank
moves from the periphery to the top of the tank. Forming a whirlwind funnel-
shaped stirring action, which can smoothly stir and soften the solder paste,
defoam and reach an appropriate viscosity. After stirring, the solder paste has
good wettability, uniform diffusion, excellent printing effect, and achieves
the best flux performance during welding. Its characteristics are as follows:

Special control circuit, adjustable mixing time, convenient operation.

The solder paste is placed at 45 degrees and rotates along the axis of the axis
so that the solder paste will not adhere to the can lid.

Stable operation, low noise, with the effect of natural temperature recovery
and clear air bubbles during the mixing process.

The solder paste tank does not need to open the lid, it is convenient and safe
to take and place.

With safety devices to ensure personal safety.

TronStol provide solder mixer and smt printer, such as automatic solder paste
printer, solder paste mixer machine, smt solder paste printer and paste mixer
machine. Now the solder paste mixer price is very reasonable, if you want buy
one, you can contact us anytime.

Minimum Order: 1 pieces
