Solar Tracking Control System

Lingyang has developed its own photovoltaic solar tracking control system,
including the integration of "AI + solar tracking" technology applications,
providing customers with "hardware + software + data + service" multi-
functional solutions. The control system for solar tracking automatically
calculates the trajectory of the sun, azimuth, and altitude of the location at
any moment according to the local longitude, latitude, time, and program.
Furthermore, it automatically issues tracking commands according to the current
position of the sun and controls the operation of the motor actuator to achieve
real-time tracking of the sun by PV modules and thus increase the power
generation. Meanwhile, the supporting solar tracker software system enables the
owner and operator of the tracking PV plant to fully control the real-time
operation of the plant, so as to complete the operation and maintenance of the
plant in an efficient and safe condition.

Types of Solar Tracking System TCU

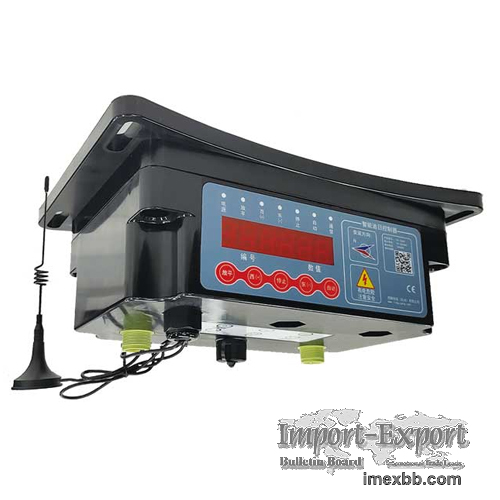

Types of Solar Tracker Controller TCU Solar Tracker Controller TCU
TCU can control the solar tracking control support motor according to the
current position of the sun to realize the photovoltaic panels are always
perpendicular to the angle of the sun, thus enhancing the power generation.

Solar Intelligent Communication Box NCU
Solar Intelligent Communication Box NCU Solar Intelligent Communication Box NCU
The tracking bracket is generally lined up north-south and tracked in an east-
west direction. The intelligent industrial control machine equipped with NCU
communicates the tracking angle through 485 w...

Operation Software Solar SCADA
Real-time collecting, monitoring, analyzing, and tracking of the operation
status of the PV power plant system. It also boasts various functions such as
fault alarm, data analysis, worksheet system, report generation, and other
functions, thereby improving the efficiency of PV power plant operation and
maintenance and ensuring stable operation of the power plant.

Advantages of Solar Tracking System

Innovation Oriented
We insist on independent research and development and focus on technological
innovation of solar tracker parts and solar tracker system project over the
years. The core team dedicate to paying attention to the real needs of users
and solar tracker efficiency improvement, improving product quality and
enhancing control accuracy. At present, our core products have been awarded 36
intellectual property rights ,including 5 high-tech products.

PV Tracking Algorithm
Starting from PV tracking algorithm and basing on AI+loT, we provide real-time
closed-loop intelligent solar tracker components. Except for the original
tracking algorithm, we add site model, cloud tracking algorithm, weather
prediction algorithm, and optimize the algorithm by combining real-time
irradiation data. These are applied not only to linked PV arrays but also to
stand-alone PV arrays. The superiority of the algorithm has been verified by
demonstration project data, which directly improves the project returns.

High Quality Guarantee
The control system for solar tracking contains multiple functions to enhance
the stability of the system, including snow protection, clean mode, wind
protection, stable wireless communication, etc. Each solar tracker software has
gone through layers of testing and certification, such as high and low-
temperature tests, vibration tests, dust tests, salt spray tests, EMC testing,
low-pressure test, waterproof test, and other certification tests with
international standards. Lingyang believes that superior product performance is
the basis of cooperation, sincere service attitude being the essence of
cooperation.

SOLAR TRACKING SYSTEM TURNKEY SOLUTIONS
The intelligent tracking electrical control system includes an intelligent
communication box NCU, solar tracker controller TCU, and a monitoring platform
SCADA. NCU, the core brain of the tracking control system, connected with TCUs
through LoRa or Zigbee, performs command issuance and data collection. Each TCU
is responsible for the rotation of the tracking bracket motor. NCU obtains
weather data from an anemorumbometer such as wind speed and direction through
485 wired in real-time; NCU communicates with SCADA through 485 wired or
4G/5G/Zigbee and other wireless to control the ZhuiKe operation and maintenance
of the upper computer station. In automatic tracking mode, the system will
automatically issue tracking commands according to the current trajectory of
the sun and control the operation of motor actuators to ensure that the PV
modules track the sun in real-time to increase the power generation.

FREQUENTLY ASKED QUESTIONS OF SOLAR TRACKER
Q
How do solar panels track the sun?
A
According to the local longitude, latitude, and time, the solar tracker
controller automatically calculates the movement trajectory of the sun at the
current moment and the azimuth and altitude angle of the location, and it also
automatically issue tracking commands according to the current position of the
sun and controls the motor to ensure that the relationship between the PV panel
and the incidence angle of the sun is always perpendicular.

Q
What is solar tracking system?
A
Our company tracking system is made of three basic units: Tracker control unit
(TCU), Intelligent communication box (NCU) and solar tracker monitor (SCADA).

Q
How to make solar tracker efficiency calculation?
A
Firstly, the data collected by the equipment is accurate, secondly, the
prediction and optimization of the algorithm is accurate, then the control of
the solar tracker controller is real-time and accurate, and finally, the action
of the motor and the information feedback are accurate. These are the
prerequisites and guarantees for efficient operation of the tracking control
system.

Q
How to make solar tracker installation?
A
If you have any questions, please feel free to leave us a message, our sales
will contact you the first time. According to your requirements, we will
provide you with detailed product information, installation and configuration
details, and offer full after-sales service at your convenience.

As a solar tracking system manufacturer, we will do our best to meet all the
needs of customers.
