SMD2410 Fuse

Time - current features：Fast-Acting(F)
Breaking Capacity: 50A@63VDC；50A@32VDC；300A@24VDC
Standard：U , L248-14
Approvals: cURus
Materials：Substrate: Ceramic，Termination: Silver over-plated with
nickel and Tin
Operating Temperature：-55℃ to +150℃
Storage Conditions：+10℃ to +60℃
Relative humidity:≤75% yearly average Without dew, maximum 30 days
at 95%
Soldering Parameters：260℃.≤10 sec (Wave Soldering)，300℃.≤2 sec
(Hand Soldering)
Soldering Peak:260℃. 10 sec.，280℃. 5 sec.

Minimum Order: 1000 pieces

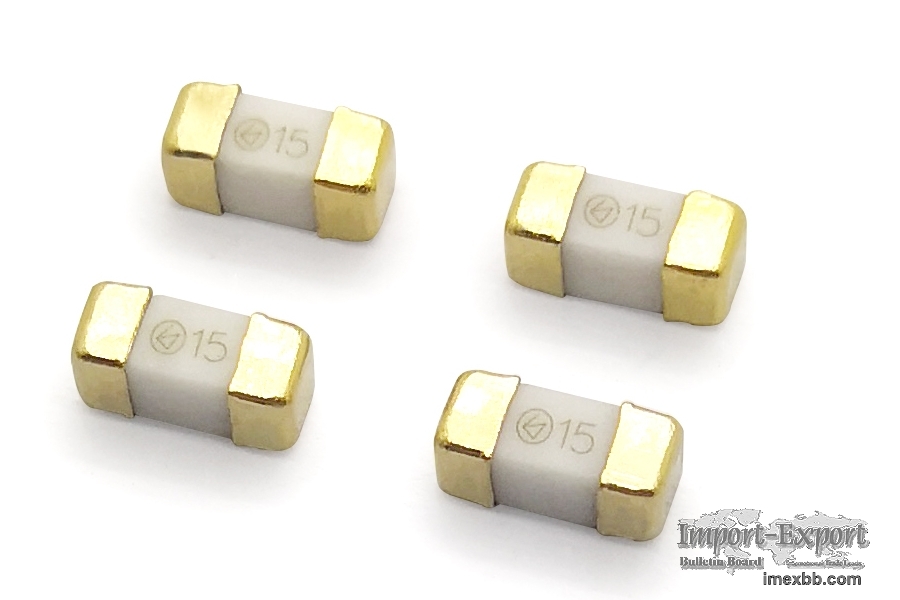

SMD2410 Fuse
