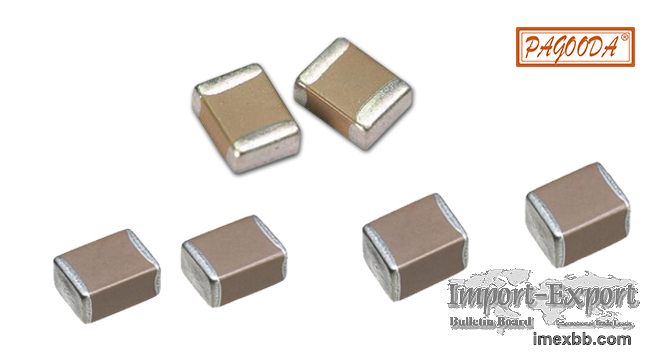

SMD capacitor 1206

Product parameter

Series: 0201, 0402, 0603, 0805, 1206, 1210, 1808, 1812, 1825, 2220, 2225;

Capacity: 0.2p-100uF 10V-5000V 0.2Pf--10Uf full range;

Deviation: B=±0.1pF, C=±0.25pF, D=±0.5pF, F=±1%, G=±2%, J=±5%, K=±10%,
M=±20%, Z=-20%+80%.

Features

★ The product has high dimensional accuracy, which is convenient for high-
efficiency assembly of the automatic placement machine;

★ The terminal electrode is a three-layer electrode, suitable for wave soldering
and reflow soldering;

★ The dielectric body and the surface are made of the same material, with little
influence from environmental conditions, high insulation resistance, and high
reliability;

★ Containing various temperature characteristic media from COG to Y5V, suitable
for common electronic equipment such as communications, computers, household
appliances and instruments.

Product advantages

1. Small size, easy for SMT processing, good solderability, compared with other
traditional plug-in capacitors, it greatly solves the problem of small space on
the circuit board. It is a representative product of high-tech products.

2. Long life span, the product life span is ten years.

3. Good stability, which is reflected in a stable requirement for the capacitance
and withstand voltage of the smd capacitor.

4. Green environmental protection requirements, because the smd capacitor are made
of ceramics as raw materials, they have achieved environmental protection and
energy saving.

5. Good heat insulation performance. Because it is made of ceramics as raw
materials, it is a natural good material for heat insulation.

The above advantages are not available in traditional plug-in resistors.



SMD ceramic capacitor

▲ Physical anatomy




Applicable industry

Suitable for LED lighting related products,power products,household
appliances,computer side office products, large industrial equipment controllers,
network equipment, communication products, digital products, automotive
electronics, security monitoring systems and other fields.

Minimum Order: 20000 bags
