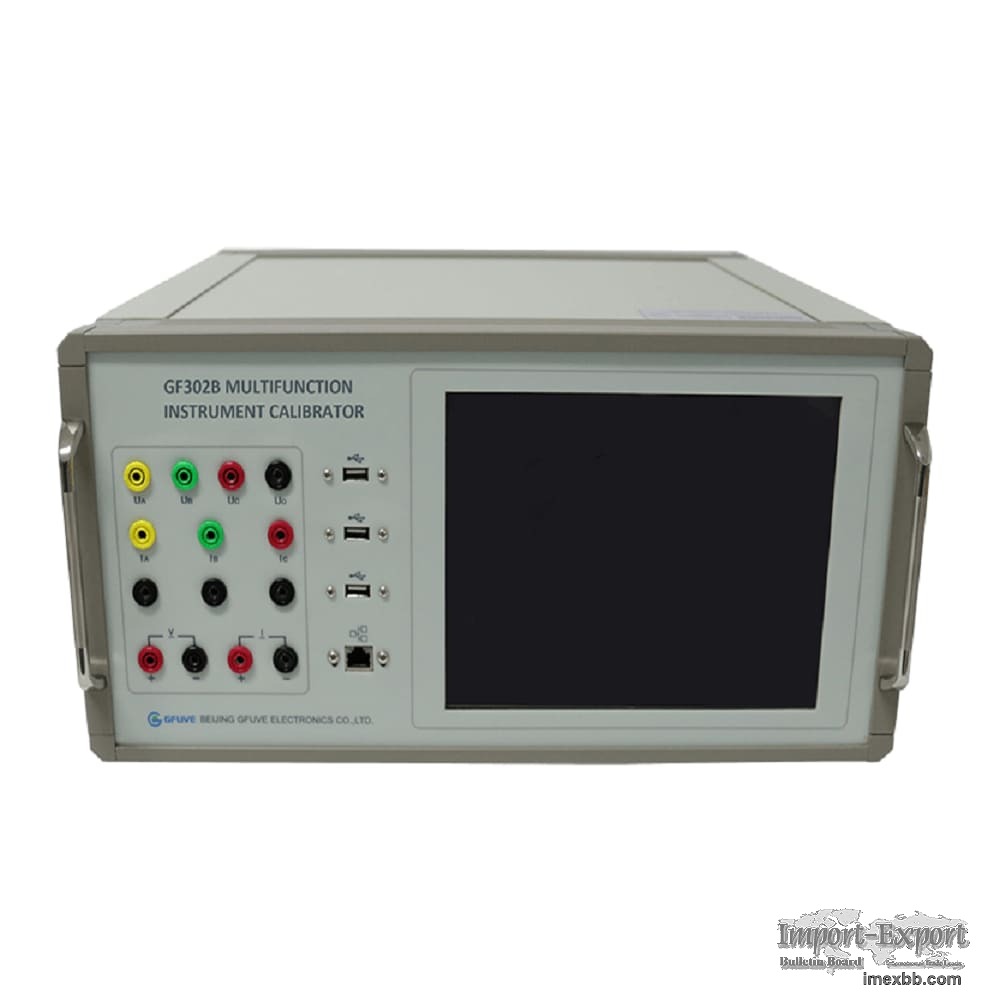

Smart Three phase Portable multimeter & transducer calibrate equipment GF30

GF302B portable smart three phase transducer calibrator is suitable for power
plant and power grid companies for the following function: measuring and testing
department and instrumentation classes, national levels measuring and testing
institutions, railway, petroleum, chemical industry and other large industrial and
mining enterprises, scientific research units, etc. The core technology function
with 32bit digital signal processor (DSP+MCU) and 24 high-speed digital A/D
converters composed of high precision work frequency communication terminal. It
can test the basic error of power transducer, the change caused by the influence
of voltage, current, waveform, power factor, etc., and the ripple content and
response time in the output DC voltage (current) of the transducer. Also as
standard three phase ac voltage source and current source, or as DC power source.
It is one ideal high precision calibrator in electrical laboratory.

FUNCTIONS & FEATURES
■ Adopt 32-bit MCU+DSP processor, powerful and flexible;

■ 8.4 inch big screen color display and English interface;

■ With USB & RS232 port, it can connect computer for data management or
controlled by PC;

■ For the software calibration, you don't need to open the case, it's stable and
reliable;

■ Wide temperature core devices are used to ensure the long-term accuracy of the
equipment;

■ With automatic failure detection function, shows fault part, the convenience
users check line;

■ Voltage output terminal with short circuit, current output terminal open
protection and power amplifier overheating protection function;

■ As one voltage source, current source and power source with high precision and
high stability standard resource;

■ The built-in electric measurement transducer, electric measurement instrument
and meter instructions of verification program, fully automatic or semi-automatic
for verification, and save 10000 group test data;

■ Check all kinds of electric measurement indicating meter, including AC/DC
voltmeter, AC/DC ammeter, frequency meter, phase angle meter, single & three-phase
ac active power meter, three-phase ac reactive power meter & synchronous meter
etc;

■ All kinds of electric measurement transducer can be tested, including AC/DC
voltage transducer, AC/DC current transducer, frequency transducer, power factor
transducer, single/ three-phase AC active power transducer, three-phase reactive
power transducers;

Minimum Order: 1 sets
