Smart Paper Book Shaped Gift Box Making Machine With Dual Box Wrapping Syst

Automatic smart paper book-shaped gift package making machine with dual box
wrapping system and high speed

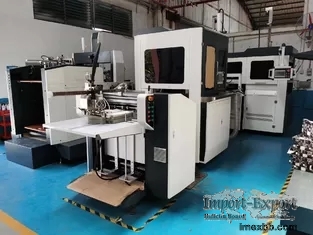

LS-1246D Automatic smart paper book-shaped gift package making machine with
dual box wrapping system and high speed is an ideal machine for customer who
has changable orders.



It including the box corner pasting, paper gluing, box positioning, box
wraping and pressing at one time. This machine has applied visual positioning
for easy and high accurate positioning. Automatic setting in the forming
station make the whole machine setting time reduce grealty.



The LS-1246D is best choice for rigid box, cardboard box, cosmetic box,
ring box, shoe box, lip and bottom box, jewelrry box, phone box prodcution.


Specs of autoamtic smart rigid box making machine
Type LS-1246D
Paper size(max) L800*W600mm
paper size(min) L135*W100mm
Max cardboard size L760*W560mm
Min cardboard size L120*W100mm
Box size(length) L100-600mm
Box size(width) W60-400mm
Box size(height) H15-120mm
Paper thickness 80-350g/m2
Cardboard thickness 0.8-3mm
Edge folding size 10-90mm
Turn in depth 15-80mm
Working speed 15-45 pcs/min
Motor power 13kw/380v 3phase
Heating power 8kw
Air pressure 40L/min 0.8MPa
Weight of machine 4300kg
Machine dimension L6600*W4200*H3000mm
