Smart Card Personalization and Issuing Machine

To meet high-volumn personalization production for SIM card with multi-chips,
PTA-8500A was developed and put into the market in 2015. The PTA-8500A can
perform high-volumn of various SIM cards personalization including chip
encoding, laser marking and card surface information verification.

With more than 100 sets delivered and proven by the market for over 8 years,
the PTA-8500A smart card personalization machine has become the mainstream SIM
card personalization equipment for the most famous SIM card manufacturers in
China and even in the whole world.

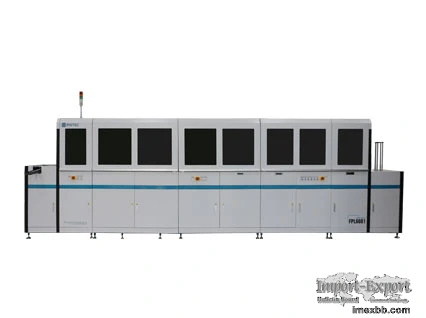

To meet the diversified design of banking cards and order volume, PIOTEC's
flexible personalization line FPL6081 was developed. Based on a modular design,
FPL6081 smart card personalization machine can be configured with function
modules including magnetic encoding, contact IC encoding, contactless IC
encoding, thermal printing, embossing and indenting, topping, optical visual
verification & contact IC verification & contactless IC verification, the
quantity for each module can be decided by customer's need.

PTM-120B can be integrated with short-circuit punching, open and short tests,
chip initialization & pre-personalization as well as reject chip punching and
marking. The brand-new design enables operators to switch chip production
between 6PIN and 8PIN within 60 seconds. Modular design can meet your different
production requirements and maximize your investment cost.

PTM-120B card personalization machine can be applied to contact/contactless and
dual interface chip initialization and can also be customized according to the
demands of various chip production.

Parameter of Smart Card Personalization and Issuing Machine


PTA8500 Card Personalization Machine Typical Workflow

Workflow 1: Personalized Data Writing
Standard configuration: 32 contact IC card writing stations, 64 read and write
heads, and 16 Paltec four in one contact readers PT204PT-AMA.

Scalable configuration: up to 64 card writing stations, 384 read and write
heads, 96 Peltec four in one contact readers PT204PT-AMA. It can achieve data
writing for standard cards, dual core, four core, or six core cards, meeting
customers' requirements for high compatibility and high production capacity.

01
02
Workflow 2: Personalized Marking
Configure 2 sets of high-speed laser marking modules.

Configure two 50W fiber laser marking machines.

Equipped with 2 smoke purifiers.

It can achieve uninterrupted laser marking, support dual laser serial and
parallel marking, and can be flexibly configured according to order conditions,
thereby improving marking efficiency.

01
02
Personalized Identification Process for FPL6081 Card Personalization Machine
There are many personalized identification processes for FPL6081, including
flat printing, embossing, hot stamping, etc.
Thermal Printing:

Equipped with 2 sets of monochrome thermal printing modules with resolution of
300DPI, more modules can be added on requirements.

Image formats such as BMP, GIF, TIFF, PGN are available.

Embossing and Indenting:

Equipped with 3 set of embossing and indenting character modules, , more
modules can be added on requirements.

Character Plate Capacity: up to 120 characters.

12 lines with 31 characters for each can be printed, and the character spacing
is arbitrarily adjusted.

Conforming with ISO standard for international credit card special character.

Topping:

Golden and silver topping are supported.

Ribbon breakage and margin detection can be executed.

FAQs of Smart Card Personalization and Issuing Machine
FAQS
What is the relationship between the data writing time and production capacity
of the device?

Generally speaking, if the data writing time is longer, the production capacity
will relatively decrease, and there is an inverse relationship between the two.
Taking PTA-8500A as an example, the relationship between data writing time and
production capacity is as follows:

Capacity table

Note: Capacity is calculated based on the number of cards.

What are the benefits to users of the flexible performance demonstrated by the
PFL series of devices?

How long does it take for PTM-120T equipment to switch between different stripe
module specifications?

Now the plastic id card making machine price is reasonable, if you have needs
to buy trading card making machine , please contact us.

Since its establishment in 2011, Piotec has been committed to the R & D,
production, sales and service of smart card, eSIM and Internet of things
security chip and semiconductor chip manufacturing equipment, and has grown
into a well-known equipment manufacturer in the field of smart card and mobile
Internet security chip production.

Minimum Order: 1 sets
