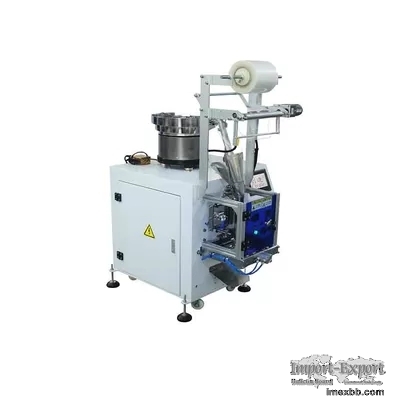

Small Vertical Fully Automatic Packaging Machine 1100mm GL-B861

Product Description
GL-B861 Small Vertical Fully Automatic Packaging Machine Simple Operation



1 , Product overview:

Our single-tray vertical automatic packaging machines use advanced processes
and technologies to improve packaging efficiency and accuracy, and provide
reliable packaging protection for your products.
It has fully automated packaging functions, and the entire process from
material feeding to sealing can be automated. This greatly improves
packaging efficiency, reduces the need for manual intervention and improves
the overall efficiency of the production line.
It adopts a vertical design, takes up little space, and is suitable for
limited production environments. The design also makes the packaging machine
more stable during operation, ensuring high-quality sealing and packaging
results.



2 , Product specifications

Equipment model GL-B861
Counting method automatic
Bag size width 40-140 length 200 (usually 140)
Packing speed 1-60 bags/min
Sealing shape stripe, back sealing/three side sealing (conventional back
sealing)
Voltage power 220V/50HZ P≈0.6KW
Air supply 0.4-0.8MPA
Bag mouth shape figure cutter tooth shape
Dimensions 1100mm*750mm*1550mm(L*W*H)
Weight about 150KG




GL-B861 Small Vertical Fully Automatic Packaging Machine Simple Operation

Small Vertical Fully Automatic Packaging Machine 1100mm GL-B861 0



3 , Technical characteristics

1 . Vibrator bowl automatic arrangement of materials, automatic counting,
automatic filling, automatic packing, sealing function, output count.

2 . Adopt intelligent temperature control system, stable temperature
control, temperature can be adjusted according to needs.

3 . The length of packaging bag is adjustable, the total number of packaging
is adjustable, the set number of automatic alarm.

4 . After packing, the bag is uniform, neat, beautiful and firm. It can also
be equipped with coding machine, check weighing, labeling machine, hoist and
other expansion equipment.



4 , our service

We have perfect service system:



Before sales Services

① . many professional packing videos,give you direct feeling about our
machines.

② . free packing solution from our R&D department.



In sales Service

We have the trained team to follow your orders methodically to guarantee the
products can be finished on time with high quality.



After sales Service

① . Manuals/Video of machine installation, adjusting,setting,maintenance
are available for you .

② . The machine will have one yeah warranty. During the warranty year if
any of the parts broken not by man-made. We will free charge to replace the
new one to you .

③ . If any problems happened and you can not find out the solutions,
Telecom or Online face to face communication available



GL-B861 Small Vertical Fully Automatic Packaging Machine Simple Operation

Small Vertical Fully Automatic Packaging Machine 1100mm GL-B861 1
