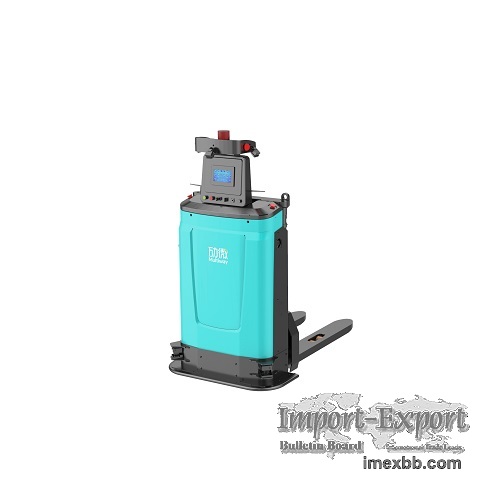

Slim Pallet Stacker MW-SL14

Slim Pallet Stacker MW-SL14, Multiway robotics AGV stacker using laser
navigation and positioning, the payload reaches reach 2 tons, and the lifting
height can reach 5m. The larger battery capacity design extends the working
time while reducing the number of charging, which effectively improves the
working time and working efficiency of the unmanned forklift. Inquiry Multiway
robotics AGV cost for automatic pallet stacker.

Specifications of MW-SL14 Slim Pallet Stacker

●Standard ○Option
Standard Models MW-SL14
Slim Pallet Stacker AGV
Navigation Laser+Reflector Navigation ●
LiDAR SLAM Navigation ○
Hybrid Navigation (LiDAR/Laser Reflector+QR Code/Magnetic
Spots/Ceiling) ○
Communication Wireless Wi-Fi ●
Optical Communication ○
5G ○
Specifications Payload (kg) 1400
Max Lifting Capacity (mm) 3000
Weight (kg) 730
Dimensions LxWxH (mm) 1565x882x1935
Motion Motion Forward, Reverse, Turning
Speed (Empty-load/Full-load) (m/s) 1.66
Positioning Accuracy (Bearing wheel center) (mm) ±5
Climbing Capability (mm) ≤3° (5%)
Battery Charging Mode Manual/Auto
Battery Replacing  Assembly
Type Lithium-Iron
Voltage (V) 24V
Capacity (Ah) 150/180Ah
Operation Time (h) 4-5h
Charging Station 24V100A


As one of agv suppliers, we will provide more high quality products for
customers.
