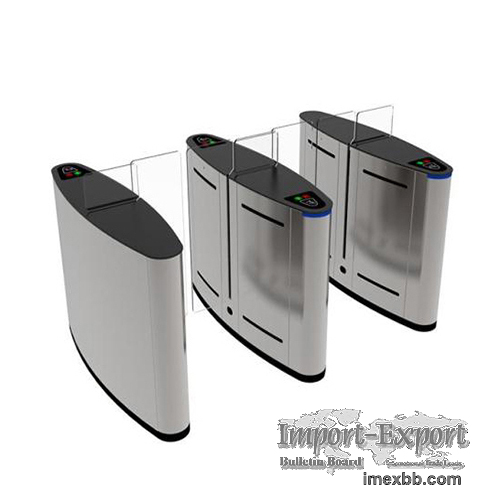

Sliding Barrier Optical Turnstile JDPYZ-9

Stylish design sliding barrier optical turnstile, sliding optical turnstile gate virtually blends infinite aesthetics within architectural interior needs

Sliding barrier optical turnstile JDPYZ-9 operates in a fast, accurate, stable and quiet way with low-power consumption, and a longer service life, which comes with a high transparent glass baffles (Max 1.8 meters), effectively preventing people from crawling or climing over, and designed with stylish apperance perftly blending into the aesthetics of the sorrounding interior. Becausee of the unique design and rapid throughput, optical sliding barrier turnstile JDPYZ-9 is an effecient contactless crowd control solution for upscale corporate lobbies, high rise building entrances, luxury apartment complexes, universities, and anywhere autonomous entry and aesthetics are important.

Sliding barrier optical turnstile JDPYZ-9 monitors the pedestrians passing through the automatic turnstile lanes by photocells, which detect the direction and prevent closure as long as a pedestian or object Is within the secured area. In addition, sliding optical turnstile JDPYZ-9 will be closed automatically after the passage is cleared, and the tailgating attempts or entry without authorization will be dectected and trigger an alarm singnal. Finally, siding barrier optical turnstile JDPYZ-9 automatically opens to provide free passage in the event of power failure or in an emergency.

Sliding Barrier Optical Turnstile Features
1. Intuitive approach detection
2. Precision controlled tempered glass obstacles
3. Designed in compliance with the most stringent safety and security standards
4. In case of emergency the obstacles can be unlocked with a simple push to automatically open
5. Electro-mechanical locking to withstand forced entry attempts
6. Glass obstacles up to 1800mm without or with straight or sloping overhang
7. Silent and smooth in operation
8. Smooth, swinging-motion glass barriers
9. Unique detection system accurately tracks the passage of a single authorised user
10. Stylish and flexible design able to virtually blend infinite aesthetics within architectural interior needs

Sliding Barrier Optical Turnstile Applications
Offices
Banks
Public institutions
Data centres
Sensitive sites
Schools and universities

Sliding Barrier Optical Turnstile Parameters
Housing Material: #304 stainless sheet
Dimension: 1400 x 350 x 980mm
Power Supply: AC220V / AC110V, 50/ 60 Hz
Lane Width: 500mm~550mm
Drive Motor: DC 24V brushless motor
Pass Speed: 35 persons per minute
Input Interface: Dry contact signal or +12V level signal or DC12V pulse signal
Rotating Direction: Bi-directional
Communication Interface: RS485
Rest Time after Power On: 3 seconds
Open Time: 1 second
Life Cycle: 3 million times
Working Temperature: -30°C~+70°C
Working Environments: Indoor, outdoor (with shelter)

FAQs
What is sliding barrier optical turnstile?
Sliding barrier optical turnstile is another classic type of optical turnstiles which is designed to regulate the flow of authorised pedestrians and deny unauthorised access. Coupled with an array of optical sensors to determine the number and direction of persons passing through the lane, optical sliding barrier turnstile provides convenient, fast, and secure access. Equipped with sliding flaps closed strait horizontally, which are made of tempered glass, sliding barrier optical turnstile is distinguished from other waist heigh turnstiles by the glass sliding panels which can be supplied up to 1.6 metres high, providing higher security level than other waist high optical turnstiles, as it is impossible to hurdling over them. Sliding gate optical turnstile is compatible with various access control systems and auto open in case of power failure or in emergency. Fast throughput, reliability, and stylish design makes turnstile barrier speed sliding gate the perfect solution for applications where access security is required and is a popular choice for office buildings, business centres and public buildings.

How does a sliding barrier optical turnstile works?
Sliding barrier optical turnstile is equipped with sliding flaps closed strait horizontally which operate in two-directional movements. When closed, the sliding flaps meet each other to form a barrier between restricted area and public area. When opened, the wings fully retract into the cabinet, creating free passage. Full height sliding turnstile gate is supplied with infrared sensor to ensure that only one person enters for each authorized credential at one time. The pedestrians shows their valid credential before entry, the sliding turnstile barrier gate will open for free access.Closure takes place immediately after passage or after and adjustable holding-open time, preventing unauthorized passage or tailgating. The opening time and closing time can be progranned depened on the height of the sliding faps. In case of power failure of in emergency, the obstacles can be unlocked with a simple push to automatically open.

Sliding barrier optical turnstile types
According to different drive motor, sliding barrier optical turnstile can be divided into
Brush motor sliding barrier optical turnstile: uses DC24V brush motor, it is an ideal crowd control managment requiring simple and cost-effective operation.
Brushless motor sliding barrier optical turnstile: uses DC24V brushless motor, featuring fast opening speed, barrier-free, silent, safe to use,easy to use and maintain. Because of modular design, simpler structure and more convenient maintenance. The brushless motor is powerful, no wear, no noise, and its life is much longer than other motors.
The cost & price of brushless motor sliding barrier optical turnstile is higher than brush motor sliding barrier optical turnstile

What are advantages of sliding barrier optical turnstile?
1. Equipped with high physical barrier to effectively prevent people from crawling or climbing over which contributes to a higher level of security.
2. Provide fast, safe and convinient passage
3. In case of power failure, doors will automatically retract for a clear passage, making fast evacuation possible.
4. Obstacle safety detection with audible alarm, convenient to maintain and use.
5. With a variety of operating models and functions, it can be programmed to be bi-directional access, or exit by sensors.
6. Equipped with infrared photo beam sensors, mechanical double anti-folding feature, effectively protects against pedestrian injuries.
7. Reset automatically, anti-tail, anti-reverse intrusion, dual anti-pinch and stop unauthorized access.
8. Voice announcement of unauthorised use.

Minimum Order: 2 sets
