Contact: Allen
Company: Meanever In.c
101#,Minzhi Area,Longhua
Shenzhen
China
Phone: 0086 755 86173425
E-Mail: Send Inquiry Member for over 2 years
Date/Time:  3/5/24 1:27 GMT


Slide Switch Ss-14D03-Eg3 Vertical Slide Switch 1p4t Slide Switch

Product Details
Model Number:SS-14D03-EG3
Brand Name:MMT
Origin:China (mainland)

Key Specifications/Special Features:

Rating: 50V DC, 0.3A
Function: 1P4T
Timing: Non-Shorting
Contact resistance: 100mΩ max
Insulation resistance: 500V DC/100MΩ min
Dielectric strength/withstand voltage: 500V AC
Operating force: 250gf±100gf
Terminal strength: 300gf
Displacement of actuator(knob): 1000gf
Life: 10000 cycles
Operating temperature: -16ºCto +60ºC



Shipping Information:
FOB Port:China (Mainland)
Lead Time:14 - 20 days
HS Code:8536.50.00 00

Minimum Order: 10000 pieces

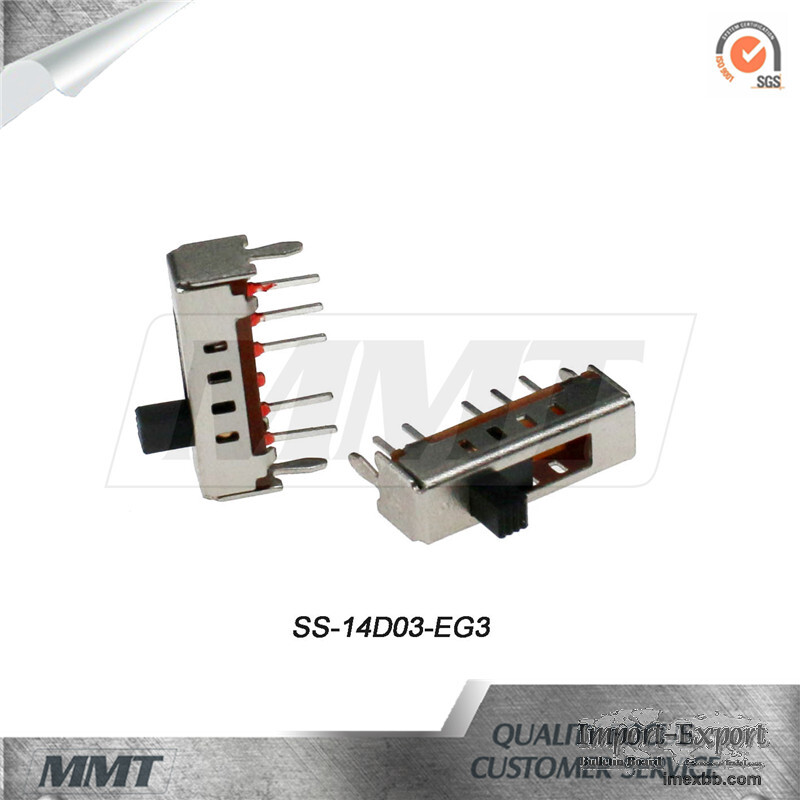

Slide Switch Ss-14D03-Eg3 Vertical Slide Switch 1p4t Slide Switch
Enlarge Click to Enlarge
