Slide Switch SS-13D02-G5 Vertical Slide Switch 1p3t Slide Switch

Product Details
Model Number:SS-13D02-G5
Brand Name:MMT
Origin:China (mainland)

Key Specifications/Special Features:

Rating: 50V DC, 0.3A
Function: 1P3T
Timing: Non-Shorting
Contact resistance: 100mΩ max
Insulation resistance: 500V DC/100MΩ min
Dielectric strength/withstand voltage: 500V AC
Operating force: 250gf±100gf
Terminal strength: 300gf
Displacement of actuator(knob): 1000gf
Life: 10000 cycles
Operating temperature: -16ºCto +60ºC



Shipping Information:
FOB Port:China (Mainland)
Lead Time:14 - 20 days
HS Code:8536.50.00 00

Minimum Order: 10000 pieces

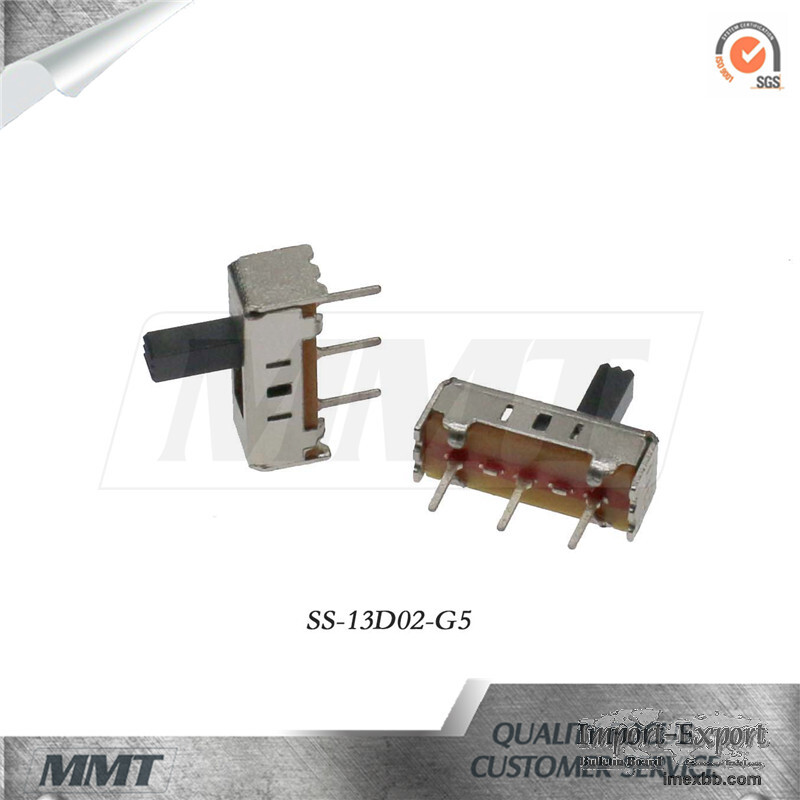

Slide Switch SS-13D02-G5 Vertical Slide Switch 1p3t Slide Switch
