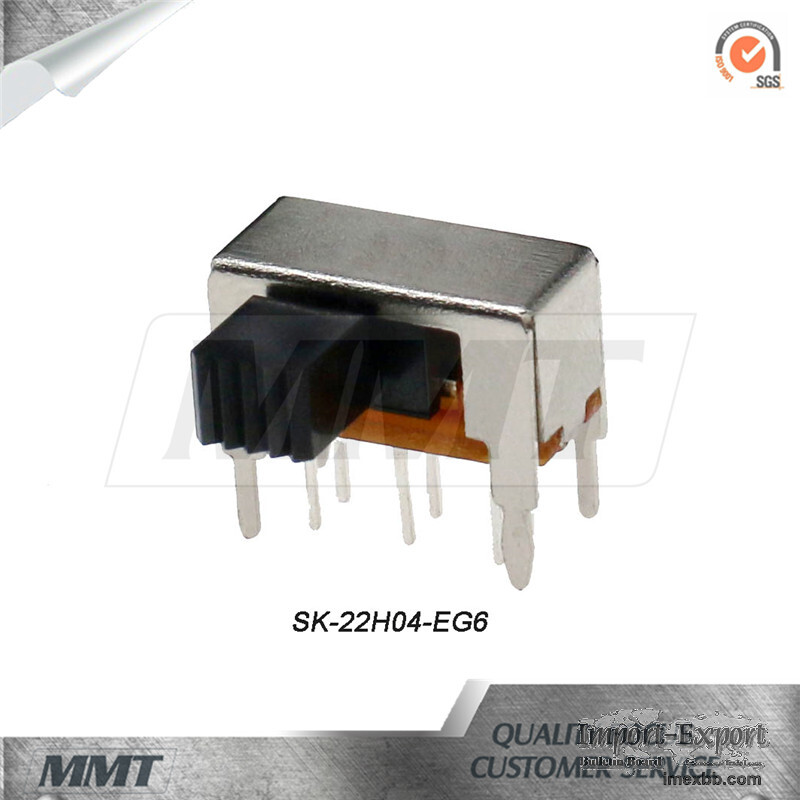

Slide Switch Sk-22h04-Eg6 Horizontal Slide Switch 2p2t DC Slide Switch

Product Details
Model Number:SK-22H04-EG6
Brand Name:MMT
Origin:China (mainland)

Key Specifications/Special Features:

Rating: 50V DC, 0.3A
Function: 2P2T
Timing: Non-Shorting
Contact resistance: 100mΩ max
Insulation resistance: 500V DC/100MΩ min
Dielectric strength/withstand voltage: 500V AC
Operating force: 250gf±100gf
Terminal strength: 300gf
Displacement of actuator(knob): 1000gf
Life: 10000 cycles
Operating temperature: -16ºCto +60ºC


Shipping Information:
FOB Port:China (Mainland)
Lead Time:14 - 20 days
HS Code:8536.50.00 00

Minimum Order: 5000 pieces

Slide Switch Sk-22h04-Eg6 Horizontal Slide Switch 2p2t DC Slide Switch
